گردگیر سیکلون

نام محصول :

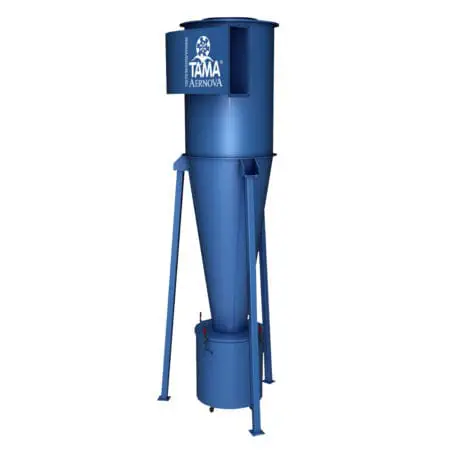

گردگیر سیکلون

برند: _

نام انگلیسی :
Cyclone dust collector

مشخصات:

Technology
cyclone

Output
Max.: 18,000 m³/h (635,664 ft³/h)

Min.: 1,100 m³/h (38,846 ft³/h)

توضیحات:
Cyclone dust collector (cyclone) is used for separation of solid fractions from air.

Cyclone can be used separately or as a pre-separation before the filter units.

Cyclone is not suitable for suction of sticky (wet) dust.

Efficiency of cyclone separator depends on size and weight of exhausted particles and it might be regulated by valve in pipelines.

Applications

blasting cabins
welding operations
grinding
joiner´s shops
glassworks
Cyclone description
Cyclone separator directs the air flow thanks to its cylindrical shape. Due to centrifugal effect and to inertia comes to separation of solid particles from the air.

Separated dust falls spontaneously to the bottom part of device which is ended by collecting container or rotary feeder.

Cyclone separator is usually placed on supporting steel construction.

Material

carbon steel
stainless steel
plastic
Accessories

integrated ventilator
supporting construction
collecting container
rotary feeder
inspection openings for regular inspection
