نام محصول:
کوپلر هیدرولیک
نام انگلیسی:
Hydraulic coupler REINOGRIP
برند:
Reinert-Ritz GmbH
مشخصات:

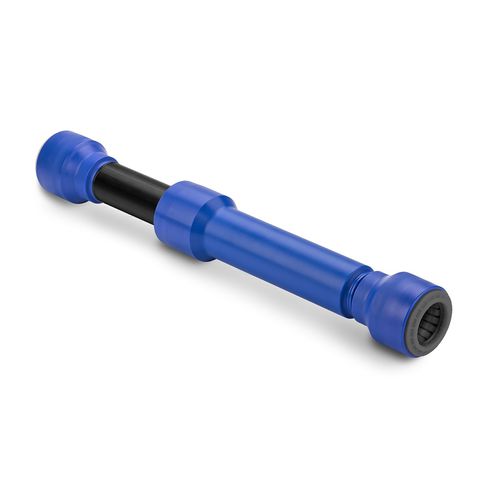

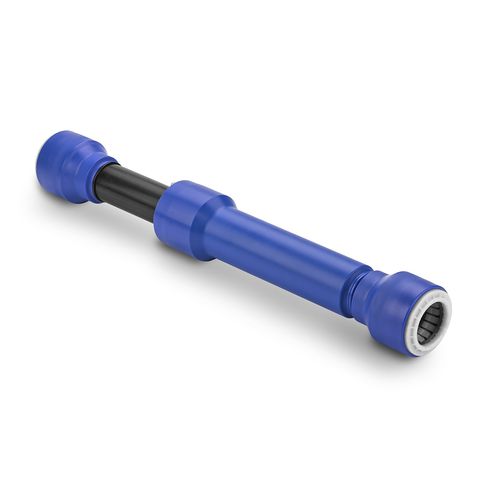

For the replacement of damaged, short pipe sections or the subsequent incorporation of branches in pipelines without welding, you will find the appropriate solution with the REINOGRIP telescope set from Reinert-Ritz. With the patented REINOGRIP system, longitudinally force-locked connections to pressure pipelines made of PVC, PP, PE100 and PE100-RC can be created quickly and safely. Here you can choose between the multi telescope set and PE telescope set variants. Multi stands for the variable applicability with PVC‑, PP‑, PE100 and PE100-RC pipes. Sealing is ensured by means of an EPDM lip seal.
The fittings to be offered must be manufactured from material in compliance with the PE100+ Association and according to DIN EN 12201 with respect to dimensions, tolerances and quality requirements.
Proof must be provided that they were manufactured on the basis of a quality assurance system in accordance with DIN EN ISO 9001.
For all fittings a certificate in accordance with DIN EN 10204 must be submitted by the manufacturer.
The body of the fitting must be manufactured in the injection moulding process or alternatively, in the case of more complex structures, from a piece of homogeneous semi-finished material so as to ensure the required reinforcement and therefore high stability of the fitting.
Semi-finished materials manufactured from wound rods or the subsequent application of other forms of reinforcing are not permitted.
The pull-resistant push-fit couplers must have grip elements with at least 5 grip teeth respectively made of high-strength plastic and that are arranged on spring-loaded supports.
The self-activation of the grip must be ensured by an elastomer ring.
توضیحات:
Type
hydraulic
Applications
for pipes
Other characteristics
HDPE
