نام محصول:
کوپلر مکانیکی
نام انگلیسی:
Mechanical coupler KM DTS 17
برند:
Aliaxis
مشخصات:

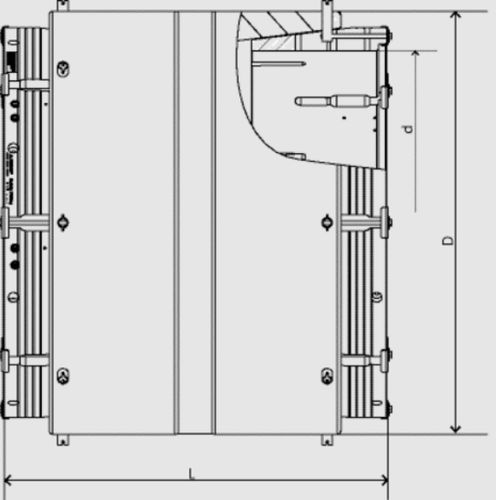

Conical ring coupler KM SDR 17
Gas and water
Maximum pressure: Gas 5 bar; Water 10 bar
Material; PE 100
Combination of coupler and clamping coupler
Problem solver (pipe ovally and different diameters)
Safety technology
Separate fusion zone
Areas of Application
FRIALEN conical ring couplers KM XL greatly simplify connections on pipes exhibiting large ovalities and tolerances and flattened points.
Assembly Instructions
The conical ring coupler KM XL features a unique flexible conical ring coupler technology that adapts it to pipe surface irregularities. This variable range of diameter tolerances can also offset large tolerances on the pipe’s outer diameter and ovality. Installation can proceed after the one scraping process only, without retaining devices and rounding clamps (for pipe ovalities up to 6%).
The preparations (removing the oxide layer/cleaning) and the assembly work (conical ring activation / fusion) are described in the general assembly instructions (see the instructions for the FRIALEN conical ring coupler KM XL).
The fusion of the pipe ends with the conical ring coupler KM XL takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The conical ring coupler KM XL must be fused exclusively with the powerful fusion unit FRIAMAT XL fitted with a Y plug. The FRIAMAT XL is a universal solution operating with an input voltage of 400 V and output voltage of max 80 V.
The conical ring coupler KM XL d 1200 must be fused twice on both coupler sides (separate fusion of inside conical ring and outside conical ring).
Good reasons for the FRIALEN conical ring coupler KM XL:
Compact design
Maximum stability thanks to large wall thicknesses
توضیحات:
Type
mechanical
Applications
for pipes
Other characteristics
compact
