نام محصول:
کوره تهویه آلومینیومی سری BDTG
برند:
BSK Ventilation
نام انگلیسی:
Aluminum ventilation grill BDTG series
مشخصات:
Materials
aluminum
توضیحات:
MODEL

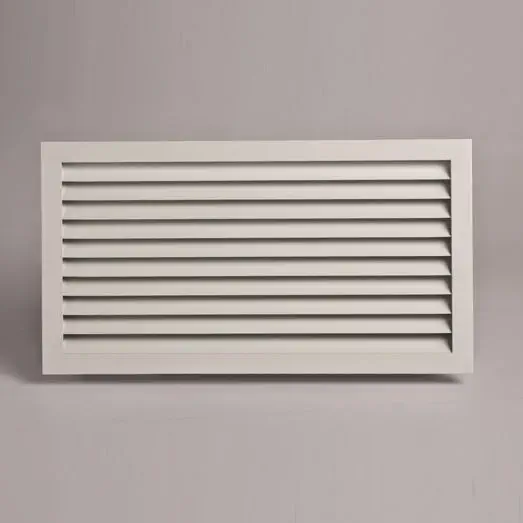

BDTG : Door transfer grille, with “V” form blades, 22 mm frame and facing frame.
MATERIAL
All of the product frame and blades are manufactured from extruded aluminium profile.
USAGE
They are used for providing the natural air circulation occuring due to the pressure difference between the spaces. They can be applied to the walls and doors with thickness between 30 mm and 69 mm.
COATING
•Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
•Aluminium anodized
•Depending on demand, all the colors in other RAL codes are provided too.
Frame Types
•22 mm frame

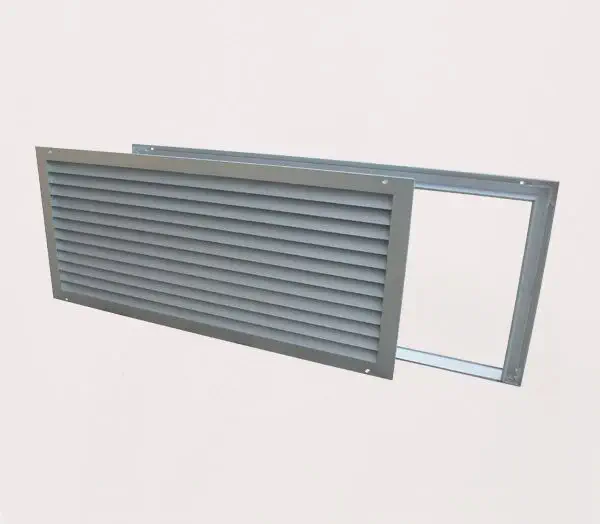

ASSEMBLY
•Installation with screw.
•Installation without screw.
ORDER CODE
Model / Frame Type / Accessory / Assembly Method / Standard Dimensions / Coating Type
SYMBOLS
SC : Installation with screw
W (mm) : Neck length
H (mm) : Neck height
EPC : Eloctrostatic powder coating
NA : Aluminium anodized
