نام محصول:
کمپرسور پیستون
نام انگلیسی:

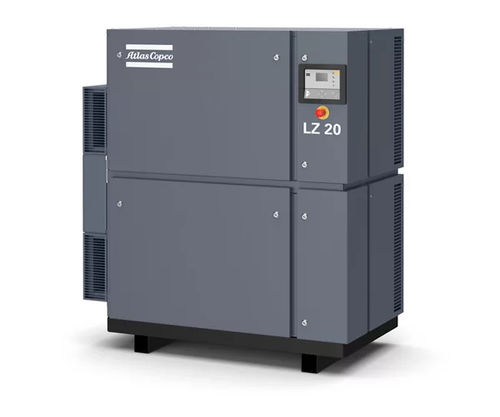

Piston compressor LZ series
برند:
Atlas Copco Compressors
مشخصات:
One of the most complete oil-free piston compressors on the market today, the LZ meets all your compressed air needs.
Need nitrogen? Add the LZ
Are you a frequent user of nitrogen? The Atlas Copco LZ is the high-performance, cost-saving foundation of your nitrogen generation system. The oil-free LZ doesn’t require additional filtration equipment.
As a result, the LZ gives you a more compact footprint, lower maintenance and minimized downtime. Because the LZ doesn’t compromise the adsorbent of the nitrogen generator, your system will last longer as well.
Premium Performance
Piston compressors have always presented a compelling offer: robust, low maintenance and energy efficient. However, this strong performance typically came with high noise levels and few control options. The Atlas Copco LZ eliminates this trade-off.
The LZ oil-free piston compressors are reliable and flexible.
Meet the full range with different power (5.5–15KW), pressure (4–10 bar) and electric potential (230/400/460V) options. Choose from flexible integration options: pack and full feature, base and tank mounted versions available (for the LZ 7/10).
High energy efficiency
The direct driven LZ comes with a number of innovations like a one-bearing motor, load/stop technology… to reduce energy consumption to an impressive minimum.
توضیحات:
Technology
piston
Type
air, nitrogen
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
bearing, flexible
Other characteristics
compact, low-noise, tank-mounted, direct-drive, high-performance, electric
Tank volume
270 l, 500 l(71.3 gal, 132.1 gal)
Pressure
Max.: 10 bar(145.04 psi)Min.: 4 bar(58.02 psi)
Flow
Max.: 111.45 m³/h(3,935.82 ft³/h)Min.: 39.6 m³/h(1,398.46 ft³/h)
Power
Max.: 15,000 W(20.39 hp)Min.: 5,500 W(7.48 hp)
Length
1,440 mm, 1,442 mm, 1,752 mm, 1,984 mm(57 in, 57 in, 69 in, 78 in)
Width
808 mm(32 in)
Height
871 mm, 1,315 mm, 1,457 mm, 1,614 mm(34 in, 52 in, 57 in, 64 in)
Noise level
67 dB, 69 dB, 74 dB, 76 dB
