نام محصول:
کمپرسور پیستون
نام انگلیسی:
Piston compressor B series
برند:
Aflex Ships Equipment
مشخصات:

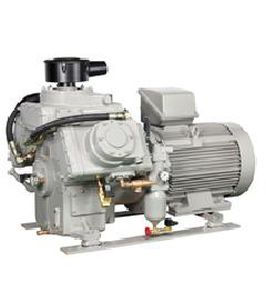

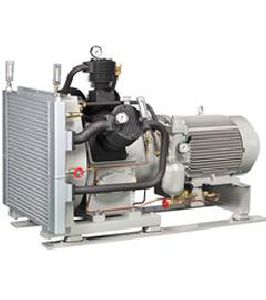

The marine air compressor are available in air-cooled and water-cooled versions. The marine air compressor is noted for its durability, high performance, space saving, low vibration, low noise level, light weight, high volumetric and low installation cost. The system is manufactured and tested under full load in accordance with the valid standards to offer economical, can apply to air and neutral gases up to pressure of 350 bar.
توضیحات:
Technology
piston
Type
air
Power source
electric
Portability
stationary
Application domain
for marine applications
Other characteristics
low-noise, high-performance, air-cooled, water-cooled, light, two-stage, three-stage
Pressure
Min.: 0 bar(0 psi)Max.: 40 bar(580.15 psi)
Flow
Min.: 22 m³/h(776.92 ft³/h)Max.: 465 m³/h(16,421.32 ft³/h)
Power
Min.: 4.9 kW(6.66 hp)Max.: 89.5 kW(121.69 hp)
Length
Min.: 800 mm(31 in)Max.: 1,812 mm(71 in)
Width
Min.: 560 mm(22 in)Max.: 1,185 mm(47 in)
Height
Min.: 600 mm(24 in)Max.: 1,135 mm(45 in)
