نام محصول:
کمپرسور پیستون متقابل
نام انگلیسی:

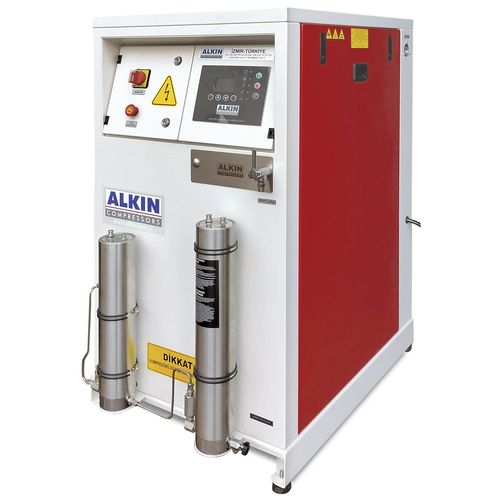

Reciprocating piston compressor W32 Canopy
برند:
ALKIN Compressors
مشخصات:
W32 model compressors are ideal for compressed air needs in the commercial sector industry, especially in diving and fire services with its 3-stage design and high-quality components.
Its main advantages are high dependability, ease of operation, robustness, and the ability to tailor equipment components to meet customer needs. Compressed air capacity ranges from 180 l/min to 330 l/min at a maximum operating pressure of 350 bar with our W32 model compressors, which are available with petrol and diesel engine drive options.
Standard Features
P41 Purifier and Refillable Cartridge
2nd and 3rd Stage Water Separator
Intercooler (Stainless)
Aftercooler (Stainless)
Priority Valve ve Check Valve
Oil Level Glass
Oil Level Switch
Electrostatic Painted Portable Chassis
Safety Valve at Each Stage
Shock Mounts
Manuel Start/Stop
Manuel Discharge
Thermal Overload Protection for Electric Motor
Control Panel: On Off Buttons, Hourmeter, Emergency Stop Button, Oil Pressure Gauge
2 Pieces Complete Filling Hoses (Yoke, Sleeve Valve, Manometer, DIN Adapter)
Breathing Air Quality Complies with EN 12021:2014
Optional
Automatic Start / Stop
Automatic Drain
Dual Pressure System 225-310 Bar / 3260-4500 Psi
Petrol/Diesel Engine Option
Stainless Chassis
Extra Fill Hose
Replaceable (Disposable) Cartridge
Replaceable (Disposable) Cartridge
Sectors
Scuba Diving
Fire Departments
Military Applications
Shipyards
Civil Defense Applications
Gas Filling Facilities
Paintball
Fish Farms
توضیحات:
Technology
reciprocating piston
Type
breathing air
Power source
diesel engine
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
high-pressure, four-stage
Tank volume
10 l(2.6 gal)
Pressure
225 bar, 310 bar(3,263.35 psi, 4,496.17 psi)
Flow
180 l/min, 250 l/min, 330 l/min(47.55 us gal/min, 66.04 us gal/min, 87.18 us gal/min)
Power
4 kW, 5.5 kW, 7.5 kW(5.44 hp, 7.48 hp, 10.2 hp)
Length
104 cm(41 in)
Width
73 cm(29 in)
Height
138 cm(54 in)
Weight
350 kg, 355 kg, 360 kg(771.6 lb, 782.6 lb, 793.7 lb)
