نام محصول:
کمپرسور پیستون خطی
نام انگلیسی:

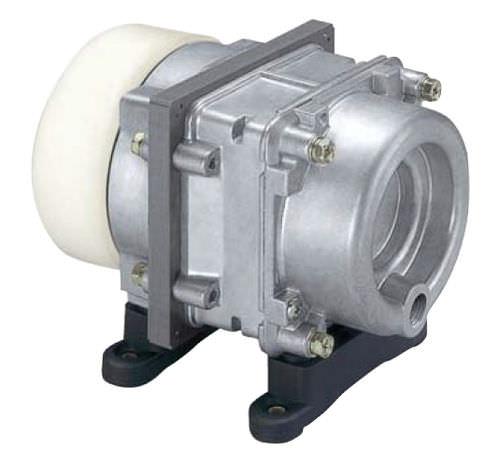

Linear piston compressor 35 l/min | AC 0401A
برند:
Nitto Kohki Europe
مشخصات:
Rated Pressure 0.1 bar
Rated Airflow 35 l/min
Rated Voltage 230 V
120 V
Maximum Pressure 0.35 bar
Power Consumption 38 W
35 W
Rated Frequency 50 Hz
60 Hz
Live Expectancy 10.000 h
Outlet ISO Rc 1/4 female threaded
Duty Cycle Continuous
Coil Insulation Class E or its equivalent (JETL) and B for UL-1450

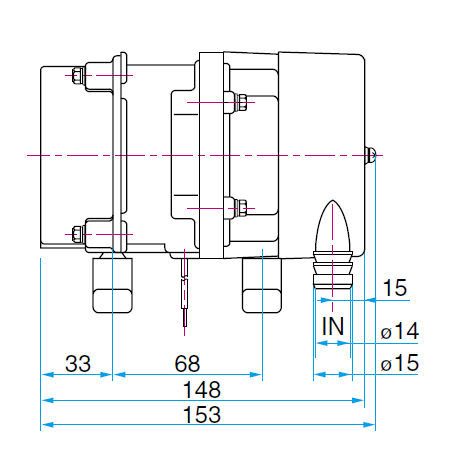

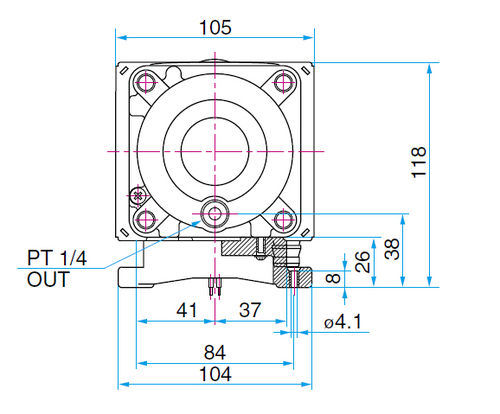

Mounting Dimensions (L x W) 68 x 84 mm
Gross Weight 1.9 kg
Leadwire Length 200 mm
توضیحات:
Technology
linear piston
Type
air
Power source
electrically-powered, AC, motorless
Portability
stationary, mobile
Lubrication
oil-free
Application domain
industrial, for medical applications
Applications
laboratory, process, for OEM, for pharmaceutical applications, for refrigeration technology, laser
Other characteristics
low-noise, compact, rugged, energy-saving, low-pressure, light, medium-pressure, electric, small, positive pressure
Pressure
Min.: 0 bar(0 psi)Max.: 0.35 bar(5.08 psi)
Flow
35 l/min(9.25 us gal/min)
Power
38 W(0.05 hp)
