نام محصول:

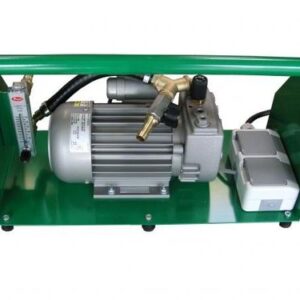

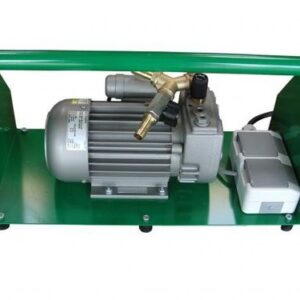

کمپرسور روتاری
نام انگلیسی:
Rotary vane compressor Comp-3™ series
برند:
Air Systems International
مشخصات:
Rotary vane air compressor rated for continuous duty
Pressure range to 110psi output
2 HP electric motor, 1750rpm continuous duty – thermally protected
115/230 VAC 1-phase, 60Hz, 17.2 amps (Requires 20amp service)
Low maintenance – 500 hours between oil changes
10″ pneumatic tires
50,000 hour minimum vane life
Built-in skid plate for stair climbing
USDA approved food grade oil in compression end
Automatic pressure unloading – full modulation air control
Breather Box™ Grade-D filtration package required
Noise level below 70 dbA at 3 feet
8 Gallon Twin-Air™ tank assembly, 8.5cf air storage @ 110psi, ASME coded
1/2″ 5000 series Hansen style coupling on air outlet
Optional explosion-proof motor (230/3 VAC only), Model TA-3EXP
Dimensions: 46″L x 24″W x 22″H
Weight: 150 lbs.
توضیحات:
Technology
rotary vane
Type
breathing air
Power source
AC
Portability
on casters
Lubrication
oil-lubricated
Application domain
industrial
Pressure
110 psi
Power
1.49 kW(2.03 hp)
