نام محصول:
کمپرسور دیافراگم
نام انگلیسی:

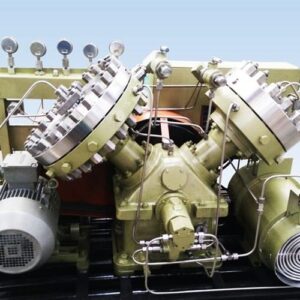

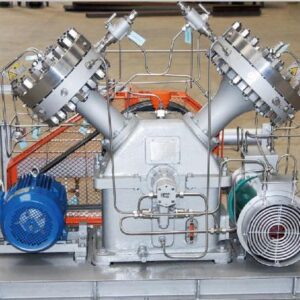

Diaphragm compressor GL2-30/4-350
برند:
Wenling Toplong Electrical & Mechanical Company
مشخصات:
Product Item：GL2-30/4-350
silent working and easy moving
24hours heavy duty working model
CE and iso 9001
two years quality guarantee
Category：G2 type diaphragm compressor
hydrogen recycle diaphragm compressor in refinery , is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.
industrial recycle hydrogen diaphragm compressor , are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa
توضیحات:
Technology
diaphragm
Type
hydrogen
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
for medical applications, for food applications, for chemical applications, for the petrochemical industry
Other characteristics
low-noise
Pressure
4 bar(58.02 psi)
Flow
30 m³/h(1,059.44 ft³/h)
Power
11 kW(14.96 hp)
