نام محصول:
کمپرسور الکترونیکی
نام انگلیسی:

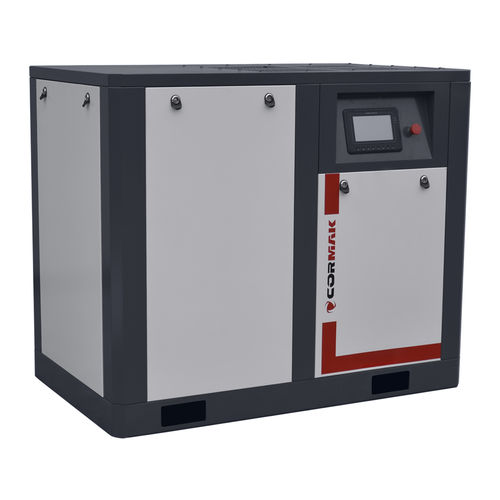

Electronic compressor THEOR 50
برند:
Cormak
مشخصات:
• hard, compact construction of screw compressor from the European producer
• specially designed cooling system ensures optimal working conditions even at high load of the device
• connection of the cooling system to the module through good quality hydraulic wires
• this technology allows significant energy saving
• special construction of air outlet for effective work
• efficient and solid pump installed in compressor
• unique filtration system with triple separation for effective work
• efficient motor with power 37 kW made in IP54 standard using a belt transmission, which ensures high effective efficiency
• lower noise of screw compressor thanks to apply specially designed soundproofed case (soundproofing plates)

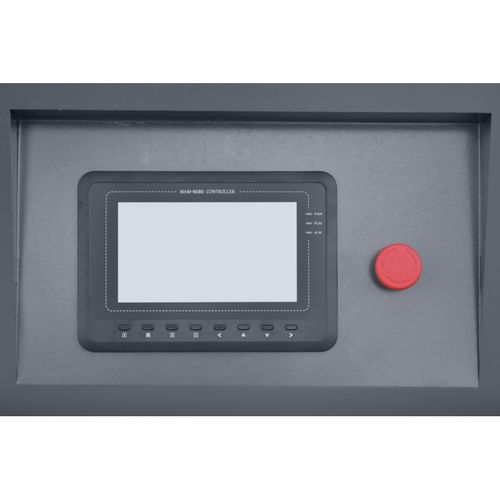

• electronic controller from MAM series allow to set parameters: time between service inspections, power failure alarms, phase change, phase loss, overheating, other, work in Master / Slave mode, it is possible to connect up to 16 devices in the pneumatic network, possibility of remote control by means of a computer and other
توضیحات:
Technology
electronic
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Applications
construction
Voltage
400 V
Other characteristics
compact
Flow
5.6 m³/min(197.76 ft³/min)
Power
37 kW(50.31 hp)
Length
1,500 mm(59 in)
Width
1,000 mm(39 in)
Height
1,330 mm(52 in)
Weight
830 kg(1,829.8 lb)
