نام محصول:

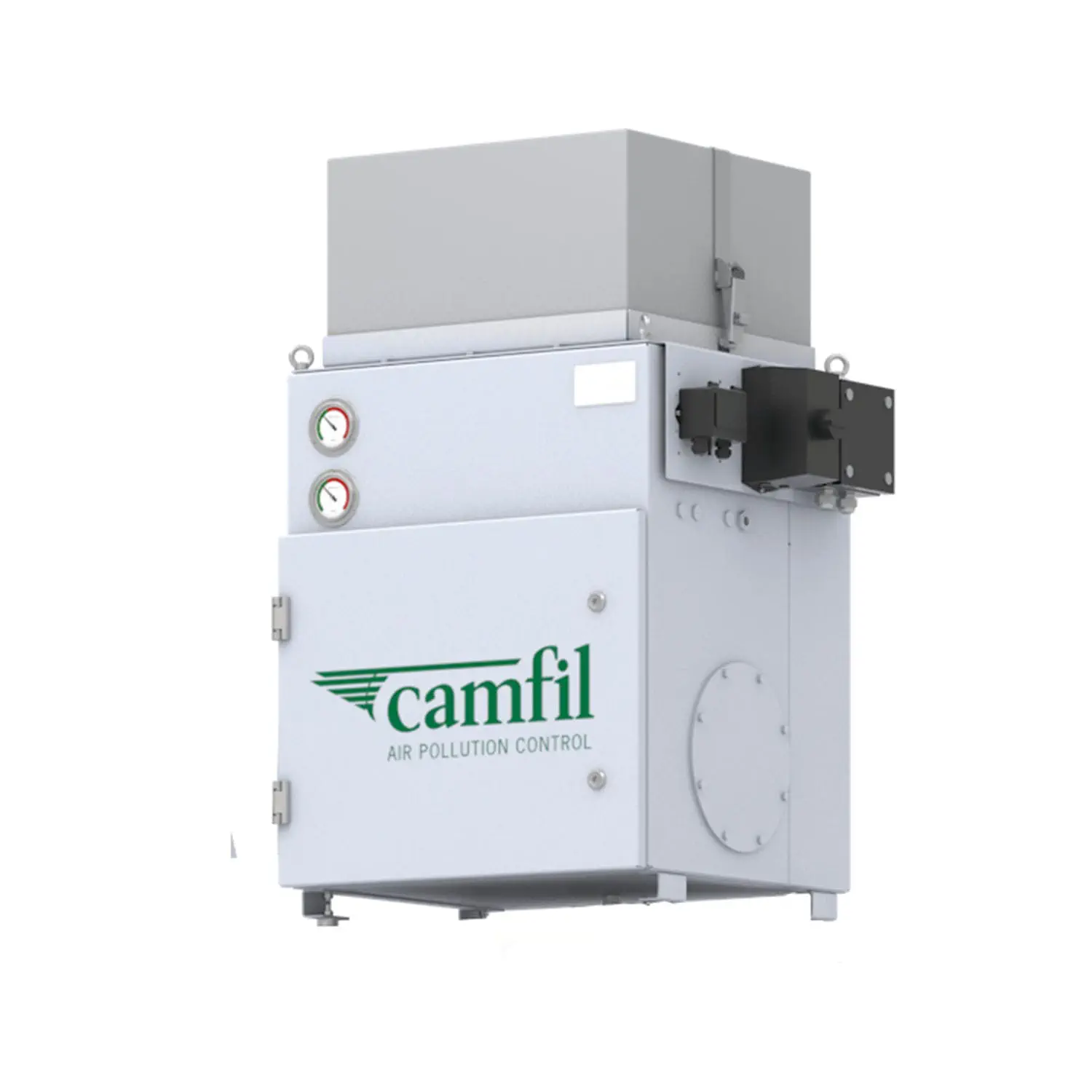

کلکتور مه روغن EM-O Compact
برند:
Camfil
نام انگلیسی:
Oil mist collector EM-O Compact
مشخصات:
Application
oil
Type
filtration media
Other characteristics
compact
Flow rate
Min.: 800 m³/h (28,252 ft³/h)
Max.: 2,600 m³/h (91,818 ft³/h)
توضیحات:
The mist separator Handte EM-O Compact is specifically designed for simple and flexible integration into machine tools with smaller air volumes. Thereby the mist extractor provides high separation efficiency on different applications with full lubrication (coolant / oil) or selected Minimum Quantity Lubrication (MQL). The biggest advantage is that the same filter elements are used.
Compact construction for easy machine tool integration
One filter for different applications
ISO ePM1 80% separation efficiently (filtration) with optional EPA11 or HEPA13 filter
Low energy consumption due to low pressure loss
Long service life: up to 6,000 hours or 2 years
Toolless filter change
Plug & play
APPLICATION
Machining mist applications with full lubrication (coolant/oil) and selected Minimum Quantity Lubrication (MQL).
INSTALLATION OPTIONS
Thanks to its space-saving and attractive design, the EM-O Compact can be easily integrated into tooling machines. Installation options are top-mount, next to a machine with an optional support rack or in a technical center, e.g. hydraulic area of machine tools. An electrical connection can be easily performed via various available interfaces, following the principle of plug and play.
COMMENT
The EM-O Compact mist extraction system with its progressive filter design and maximum filter area in the smallest space ensures high separation efficiency and low emission values better as the technical standard today. Optimised filter media enables the best possible drainage of the separated aerosols during continuous operation what leads to long service life of the filter elements and high plant availability. Especially due to the maximised filter area
