نام محصول:
کابل برق
نام انگلیسی:
Power cable GN500-01 series
برند:
Jiangsu Silver&Tin Thread Hi-Temp Wire And Cables
مشخصات:

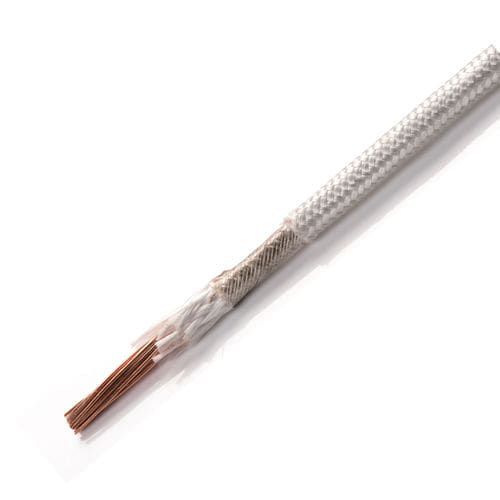

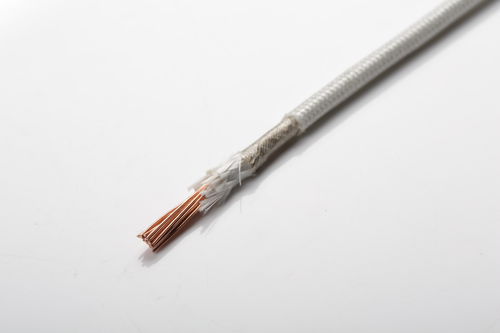

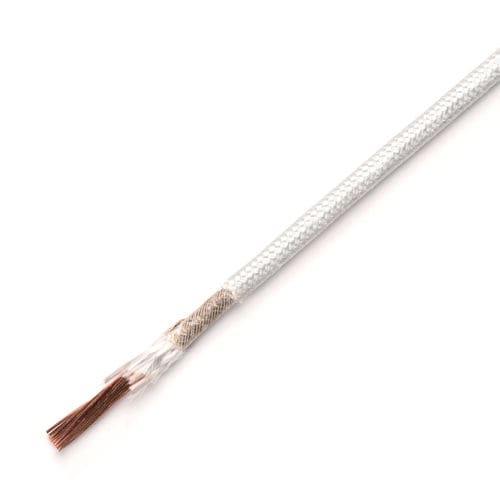

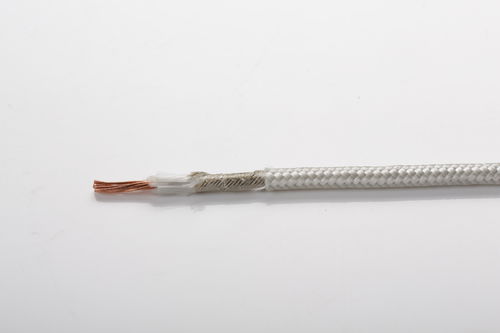

Fire resistant mica cable GN500-01
Applications:
Electric heating, petrochemical, electrical and mechanical equipment, power plant, drying path, drying room, heating source for lighting, electric appliances etc.
TECHNICAL DATA
Fire resistant mic a cable GN500-01
FIRE RESISTANCE WIRE
Conductor:Bare Copper
Temperature Range:-60°C~+350°C
Rated Voltage:500V
Colour:White-Blue-Red-Black-Brown-Yellow-Green-Yellow/Green
توضیحات:
Type
power
Protection
fire-resistant
Core material
copper
Material of the insulation
silicone-insulated, mineral-insulated, PTFE-insulated, fiberglass-sheathed
Nominal voltage
500 V
Temperature
Min.: -60 °C(-76 °F)Max.: 350 °C(662 °F)
Cross-section
Min.: 0.5 mm²(0 in²)Max.: 95 mm²(0.15 in²)
