نام محصول:

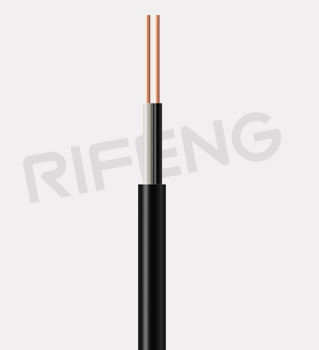

کابل برق

نام انگلیسی:
Power cable 2PNCT

برند:
Guangdong Rifeng Cable Company

مشخصات:
Product Certification: JIS

Basic Parameters：

Rated Voltag: 600V

Executive Standard: JIS C 3327

Conductor Structure：

Insulation Material: EPR

Jacket Material： CR

Product Properties：

1. The conductor is made of oxygen-free copper bar with purity of 99.99%, and therefore is of high conductivity, low resistance, elongation of 15%-25%, and high flexibility.

2. The adopted material is of high insulation resistance, which shall ≥180MΩ/KM at the temperature of 20°C; the cable, with the flame resistance meeting the FT2 requirements on horizontal flame of single cable, is suitable for application in outdoor or the case of exposure to oil pollution.

3.The domestic advanced pit furnace annealing technology is adopted to increase the flexibility of conductor; the irradiation device imported from Russia is used for manufacturing, thus to ensure sufficient crosslinking of wire rods and stable quality.

Application：

This product is suitable for rated voltage of 600V AC power and the following heavy-duty, household appliances, power tools

and various electrical equipment and tools for mobile cable.

توضیحات:
Type
power

Core material
copper

Applications
for industrial applications, outdoor

Material of the insulation
rubber-insulated

Other characteristics
JIS, with round conductor

Nominal voltage
600 V

Cross-section
Min.: 0.75 mm²(0 in²)Max.: 100 mm²(0.16 in²)
