نام محصول:
کابل برق
نام انگلیسی:

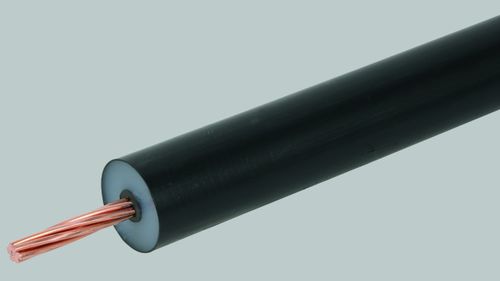

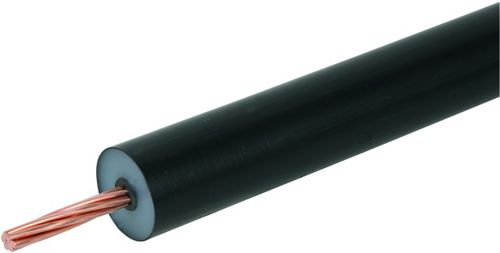

Power cable HVI P LO 90 27 L6…M series
برند:
DEHN + SÖHNE
مشخصات:
High-voltage-resistant, insulated down conductor for maintaining the separation distance to electrically conductive parts according to IEC/EN 62305-3.
Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).
Thus, depending on the class of lightning protection system (LPS) the following maximum conductor lengths can be realised with one down conductor:
LPS I max. 11.25 m
توضیحات:
Type
power
Protection
insulated
Core material
copper
Norms
IEC
Other characteristics
grounding
Temperature
Min.: -30 °C(-22 °F)Max.: 70 °C(158 °F)
Cross-section
25 mm²(0.04 in²)
