نام محصول:
کابل برق

نام انگلیسی:

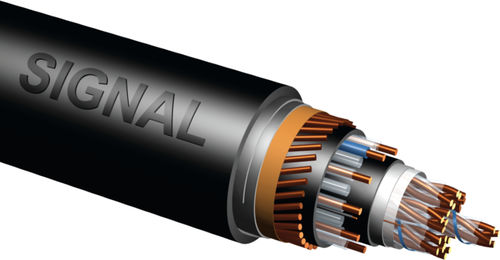

Power cable BayRail® A-2YOF(L)2YB2Y

برند:
Bayerische Kabelwerke

مشخصات:
Railway signal cables, in interlocking and monitoring systems etc., unless the use of special cables for signalling technology (e.g. PZB / Indusi (inductive train protection) cables) is prescribed

copper conductor, solid

Insulation: PE

cores stranded in cores

counting core blue, other cores natural-coloured

cable core filled with special filler, low capacity, longitudinally watertight

composite layer sheath, Al-tape and PE, black

steel tape armouring

outer protective covering, PE, black

BayRail® A-2YOF(L)2YB2Y serves as railway signalling cable, in railway control centres, surveillance systems and similar facilities, provided that the use of special signalling technology cables (e.g. PZB / Indusi (inductive train protection) cables) is not stipulated.

The cables are longitudinally watertight due to low capacitance filling material and transversally watertight due to a multi-layer sheath.

The cable is for installation in the ground or outside structures and is therefore not subject to the CPR.

توضیحات:
Type
power, data

Protection
insulated, watertight

Configuration
stranded

Core material
copper

Applications
for railway applications

Number of wire
solid

Temperature
Min.: -40 °C(-40 °F)Max.: 60 °C(140 °F)
