نام محصول:
کابل الکتریکی RF
نام انگلیسی:

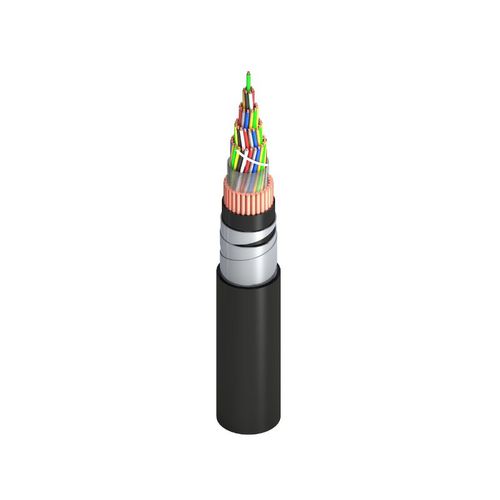

RF electrical cable EA470K0
برند:
CABLESCOM
مشخصات:
Multiconductor railway signaling cables, armoured PE sheath with a 0,1 RF, ADIF standard
Cables from 1 to 61 insulated conductors with 1.4 mm nominal diameter, PE insulation. Conductors are stranded in layers to form the core that is protected with an anti-inductive sheath with a reduction factor of 0,1 type CC-PE-2S-PE. They are used as signalling cables in railways infrastructures where protection against power lines induction is required. For installation in ducts or directly buried. Protected against rodents.
Signaling cable
Impact Resistant
UV Resistant
Rodent Resistant
EMI protected
ROHS Compliant
STANDARDS
Construction. ADIF ET-03.365.051.6
CONSTRUCTION
Conductors: Annealed copper, 1.4 mm of nominal diameter.
Insulation: Solid polyethylene.
Cabling elements: Insulated conductors.
Lay-up: Stranded in layers. Colour code as per ADIF ET-03.365.051.6.
Core wrapping: Dielectric tape longitudinally applied with overlap.
Cable screen. Bare copper wires helically applied.
Inner sheath: Polyethylene.
Armour: Two 0.8 mm thick steel tapes helically applied.
Outer sheath: UV resistant black polyethylene.
Sheath marking: The outer sheath shall be marked at regular intervals, with the
following information:
o Name of manufacturer/ Year/ Length marks
o Other type of marks according to the costumer
توضیحات:
Type
RF
Protection
insulated, armored, UV-resistant, impact-resistant, rodent resistant
Configuration
stranded
Core material
copper
Applications
for railway applications, direct burial
Other characteristics
halogen-free
Temperature
Max.: 75 °C(167 °F)Min.: -25 °C(-13 °F)
Length
1,000 m(3280’10” )
