نام محصول:
کابل الکتریکی مقاوم در برابر آتش
نام انگلیسی:

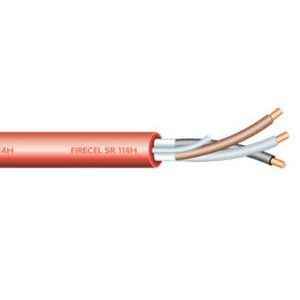

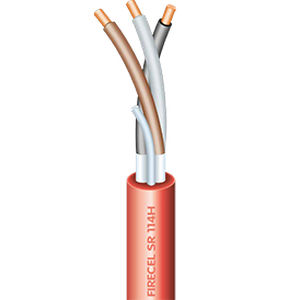

Fire-resistant electrical cable FIRECEL SR 114H
برند:
Cavicel
مشخصات:
Cavicel has specialized its production in the development of fire-resistant cables, starting the renowned FIRECEL brand
FIRECEL cables are designed to ensure the correct operation of emergency systems in public buildings, and they are realized with high-quality materials, studied to prevent the spread of fire and the emission of toxic fumes on combustion.
In order to simulate their real performances, FIRECEL cables are constantly tested and subjected to high-temperature flames (up to 950°C), to mechanical shocks, and performed under the action of water.
Conductors
Plain annealed copper wire, solid class 1 or stranded class 2 according to EN 60228.
Insulation
High performance fire resistant silicone rubber type EI2 to BS EN 50363-1.
Cabling
Insulated cores are cabled together.
Overall screen
Aluminium/polyester tape.
Circuit protective conductor or drain wire
Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3- and 4-core cables. Drain wire of 0.5 mm2 tinned copper conductor is provided in cables with more than 4 conductors.
Outer sheath
LSZH thermoplastic material type LTS3 to BS 7655-6.1.
Colour red or white (other colours on request)
توضیحات:
Type
power
Protection
insulated, fire-resistant
Configuration
stranded
Core material
copper
Number of wire
solid
Nominal voltage
300 V, 500 V
Temperature
Min.: -40 °C(-40 °F)Max.: 90 °C(194 °F)
