نام محصول:
کابل الکتریکی داده ها
نام انگلیسی:

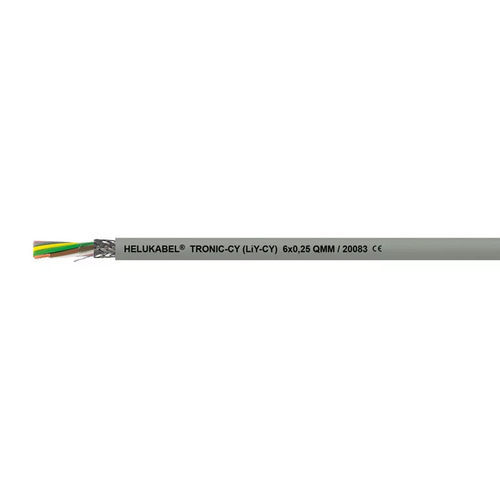

Data electrical cable TRONIC-CY (LiY-CY)
برند:
HELUKABEL
مشخصات:
colour code DIN 47100, without colour repetition
with drain wire
EMC-preferred type
PVC data cable in alignment with DIN VDE 0812
Peak operating voltage – 0.14 mm²: 350 V
0.25 – 1.5 mm²: 500 V
(not for high power current installation purposes)
Test voltage core/core – 0.14 – 0.25 mm²: 1200 V
0.34 – 1.5 mm²: 2000 V
Test voltage core/screen – 0.14 – 0.25 mm²: 800 V
0.34 – 1.5 mm²: 1200 V
Breakdown voltage – 0.14 – 0.25 mm²: 2400 V
0.34 – 1.5 mm²: 4000 V
Mutual capacitance core/core – at 800 Hz
0.14 – 0.25 mm²: approx. 100 pF/m
0.34 – 1.5 mm²: approx. 150 pF/m
Mutual capacitance core/screen – at 800 Hz
0.14 – 0.25 mm²: approx. 200 pF/m
0.34 – 1.5 mm²: approx. 270 pF/m
Characteristic impedance – 78 Ohm,
(approx. value)
Inductance – approx. 0.65 mH/km
Coupling resistance – at 30 MHz, approx. 250 Ohm/km
Minimum bending radius – flexible 10x Outer-Ø
fixed 5x Outer-Ø
Copper wire bare, 0.5 – 1.5 mm²: finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Wire structure:
0.14 mm²: approx. 18 x 0.1 mm
0.25 mm²: approx. 14 x 0.15 mm
0.34 mm²: 7 x 0.25 mm
Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
Core identification in alignment with DIN 47100, colour coded without colour repetition from the 45th core
x = without protective conductor
Cores stranded in layers with optimal lay lengths
Foil wrapping
Drain wire, tinned copper
Screen:
1 core(s): helically wound tinned copper wires, approx. coverage 85 %
2 – 61 core(s): braided screen of tinned copper wires, approx. coverage 85 %
Outer sheath: PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
Sheath colour: grey (RAL 7001)
Length marking: in metres
توضیحات:
Type
power, data
Format
DIN, coaxial
Configuration
stranded, foil
Core material
copper
Norms
IEC
Other characteristics
flexible
Temperature
Max.: 80 °C(176 °F)Min.: -40 °C(-40 °F)
Cross-section
Max.: 1.5 mm²(0 in²)Min.: 0.14 mm²(0 in²)
