نام محصول:
کابل الکتریکی داده ها
نام انگلیسی:

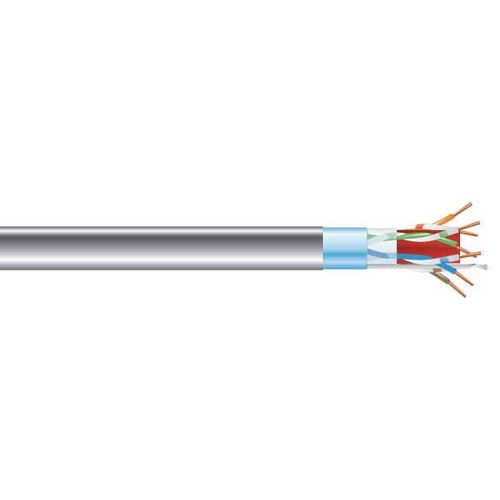

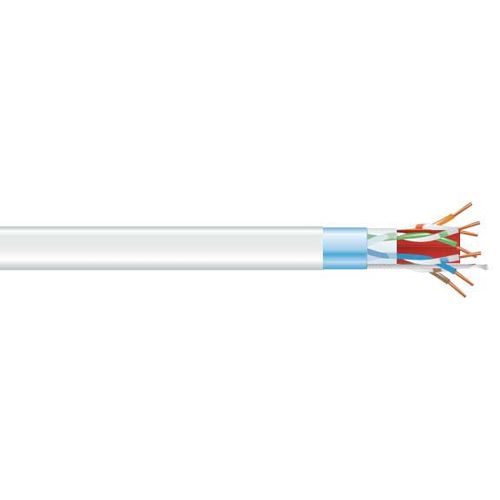

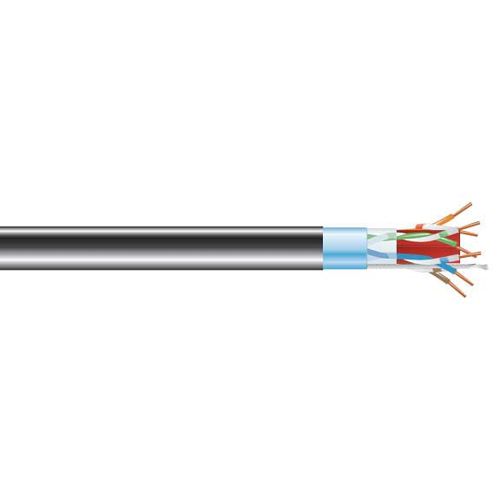

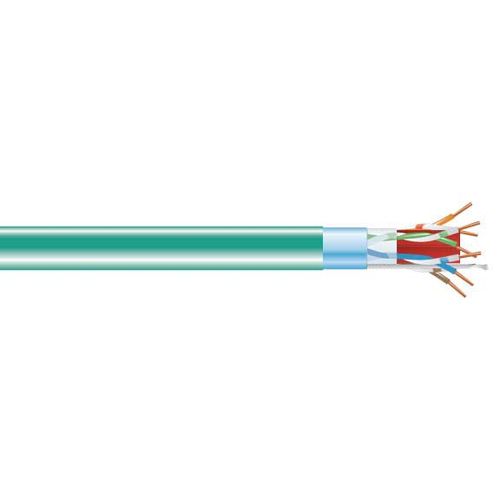

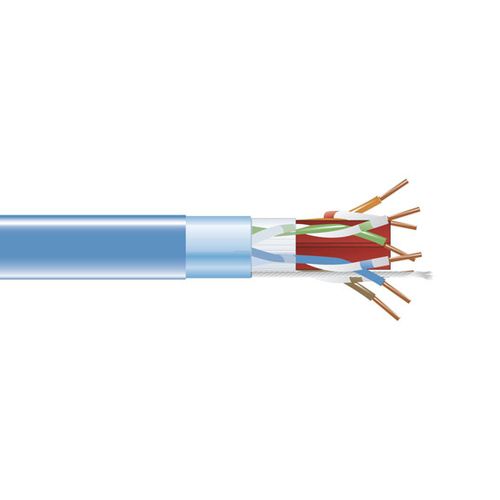

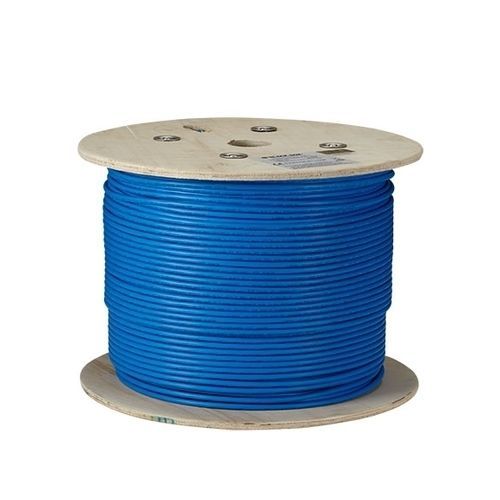

Data electrical cable C6ABC50S series
برند:
Black Box
مشخصات:
Eliminate ANEXT and power worries with CAT6A shielded, LP-certified cable.
Use with Black Box® CAT6a components for a 10GBASE-T channel.
Tested up to 650 MHz.
Foil shield construction virtually eliminates alien crosstalk.
A center isolation member maintains pair separation for optimal NEXT performance.
Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. tested.
Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar® tape.
Smaller outside diameter than normal CAT6A UTP (7,3 mm).
ACRF — (previously referred to as equal level far end crosstalk (ELFEXT)
27.8 dB at 100 MHz;
19.8 dB at 250 MHz;
18.3 dB at 300 MHz;
13.8 dB at 500 MHz;
11.5 dB at 650 MHz
Conductors —4-pair, 23 AWG, solid copper
Construction —[/b]Internal separator, FEP insulation, polyester tape, drain wire, aluminum/Mylar tape
Insertion Loss (dB/100 m) —
19.1 at 100 MHz;
31.1 at 250 MHz;
34.3 at 300 MHz;
45.3 at 500 MHz;
52.3 at 650 MHz
Insulation —HDPE
Jacket —PVC
NEXT —
44.3 dB at 100 MHz;
38.3 dB at 250 MHz;
37.1 dB at 300 MHz;
33.8 dB at 500 MHz;
32.1 dB at 650 MHz
Outside Diameter —7.3 mm
PS-ACRF —
24.8 dB at 100 MHz;
16.8 dB at 250 MHz;
15.3 dB at 300 MHz;
10.8 dB at 500 MHz;
8.5 dB at 650 MHz
PS-NEXT —
42.3 dB at 100 MHz;
36.3 dB at 250 MHz;
35.1 dB at 300 MHz;
31.8 dB at 500 MHz;
30.1 dB at 650 MHz
Return Loss (dB/100 m) —
21.1 at 100 MHz;
16.5 at 500 MHz;
15.7 at 650 MHz
توضیحات:
Type
power, data
Format
T
Protection
shielded
Configuration
UTP, foil
Core material
aluminum
Material of the insulation
polyester
Color of the insolation
black
Other characteristics
CAT 6a
