نام محصول:
کابل الکتریکی انعطاف پذیر
نام انگلیسی:
Flexible electrical cable S 90
برند:
SAB BROECKSKES GMBH & Co. KG
مشخصات:
Continuously flexible PUR control cable with numbered cores

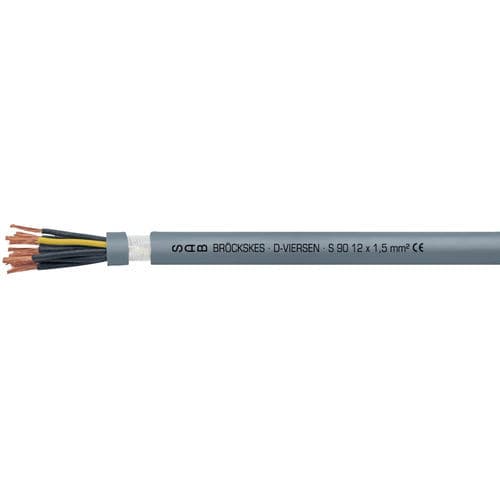

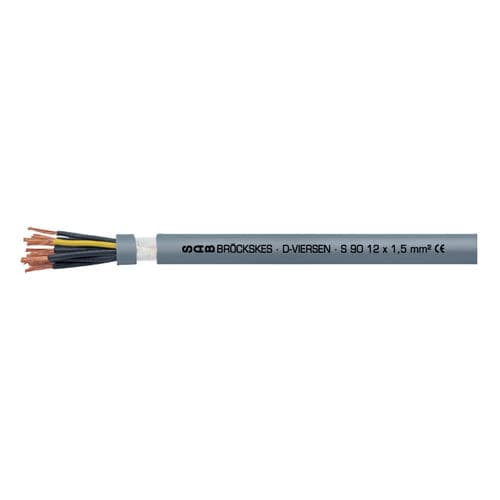

Marking for S 90 07780715: SAB BRÖCKSKES · D-VIERSEN · S 90 12 x 1,5 mm² CE
Continuous flex control cable with numbered cores as well as high tear resistance. The acid-resistant flexible control cable with increased efficiency due to the permanent use with millions of bending cycles is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.
increased efficiency due to the permanent use with millions of bending cycles
Also available as hybrid cable for example
3G1,0 + 16 x 0,34 mm²
3G1,0 + 08 x 0,34 mm²
1G0,5 + 04 x 0,34 mm²
Peak operating voltage of data conductors: max. 500 V
توضیحات:
Type
data, hybrid
Protection
insulated, oil-resistant, chemical-resistant, abrasion-resistant
Configuration
multi-strand
Core material
copper
Applications
control, for automation, welding, for welding applications
Material of the insulation
PUR-sheathed
Norms
IEC
Other characteristics
flexible, with numbered cores
Nominal voltage
300 V, 500 V, 3,000 V
Temperature
Min.: -40 °C(-40 °F)Max.: 70 °C(158 °F)
Cross-section
Min.: 0.5 mm²(0 in²)Max.: 50 mm²(0.08 in²)
