نام محصول:
ژنراتور
نام انگلیسی:
Surge generator FPT15-I
برند:
FATECH ELECTRONIC (FOSHAN) CO., LTD
مشخصات:
1.Description
Test devices helps you to guarantee lightning protection products quality, which including multimeters, varistor testers, impulse discharge current generators, we also can design and produce test devices according to customer’s requirements.
2. Introduction

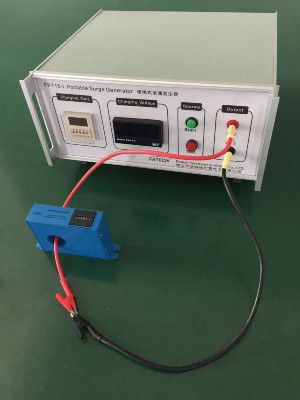

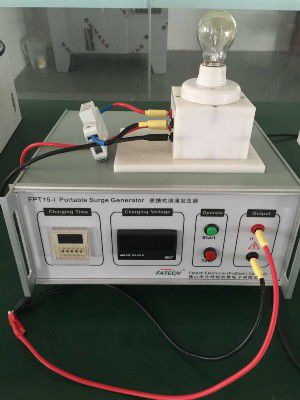

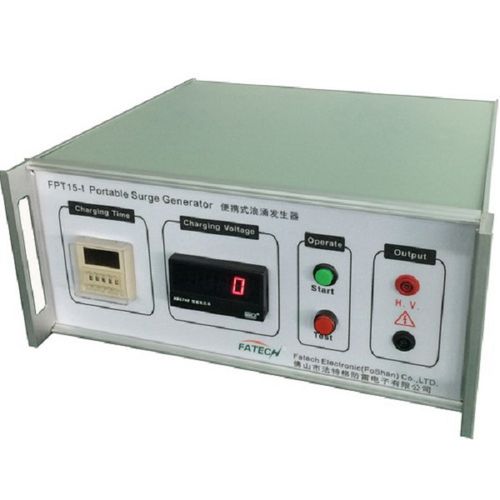

FPT15-I Portable surge generator is designed for on-site testing of surge protective device and lightning strike counter.
The surge generator is able to release max. discharge current 2.5kA, realized one-key operation of charging and discharging. Press the green “Start” button, the surge generator starts charging, the relay starts counting time until the device stop charging, while discharging. When time relay’s indication light off, the test end.
3.Characteristics
1) Portable type, small size
2) On site testing of lightning counter.
3）Max. discharge current 2.5kA.
4）Realized one-key operation of charging and discharging.
5）Demonstration of SPD working.
4. Electrical Parameters
1) Dimension（L*W*D）：360*345*160mm
2) Case Material：steel
3) Weight: 11kg
4) Operation Humidity: <=75%
5)Storage Temp: -10℃~50℃
6) Max Charging Voltage: 1100V
7) Charging Voltage Display：4 Digital LED display
8) Power supply: AC-220V
9) Surge current: 2500A
10) Over-impulse range: <20%
11) Power consumption: 50W
توضیحات:
Type
surge, current
Other characteristics
portable
