نام محصول:
پیش فیلتر هوای فشرده

نام انگلیسی:
Compressed air pre-filter F series

برند:
BOGE

مشخصات:

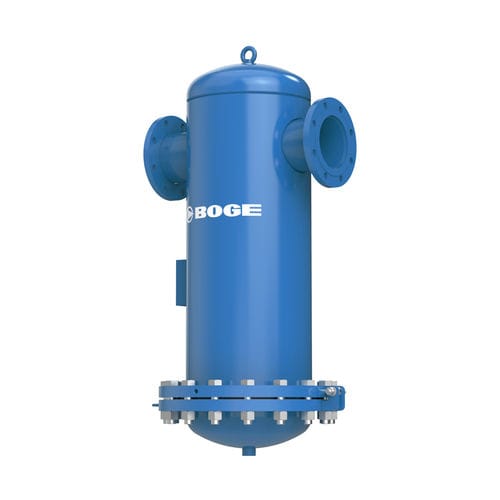

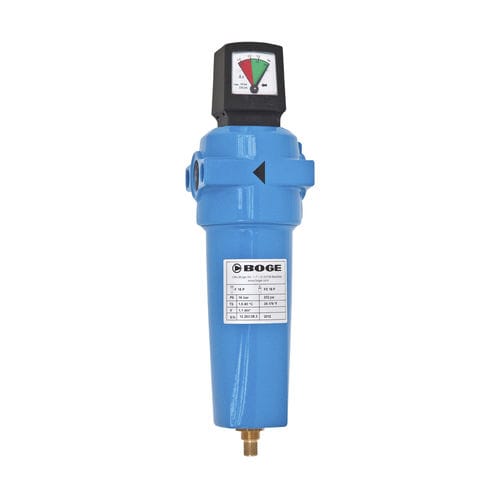

Effective solid particle filter: The BOGE F..FP depth filter removes solid particles down to 3 microns with a separation efficiency of 99.95% from compressed air or pressurised nitrogen gas. Highly effective microfibre fleeces have a high capacity to absorb dirt, while at the same time providing a consistently low differential pressure. A pleated depth filter increases the filter area by a factor of 4.5 compared with conventional elements. The design of the filter housing and the filter element is optimised to allow the flow to have the lowest possible pressure resistance.

توضیحات:
Designed for
compressed air

Filtration element
cartridge

Filtration method
pressure

Applications
depth, separation

Mounting
flange

Other characteristics
pleated, high-performance

Operating pressure
Max.: 16 bar(232.06 psi)Min.: 0 bar(0 psi)

Flow
Max.: 520.8 m³/min(18,391.878 ft³/min)Min.: 37.2 m³/min(1,313.706 ft³/min)
