نام محصول:
پنکه کفی EHAG
برند:
Rosenberg Ventilatoren GmbH
نام انگلیسی:
Floor-standing fan EHAG
مشخصات:
Installation
floor-standing
Configuration
centrifugal
Drive mechanism
EC motor
Other characteristics
IP55, IP54, compact, backward curved
Air flow
13,400 m³/h (473,216.53 ft³/h)
Diameter
Min.: 225 mm (8.858 in)
Max.: 560 mm (22.047 in)
توضیحات:
Properties
• highly efficient EC technology
• compact design
• backward curved impellers
• feet can be offset by 90°
• variable discharge direction
• integrated control system (EC controller)
• speed is 100% infinitely variable

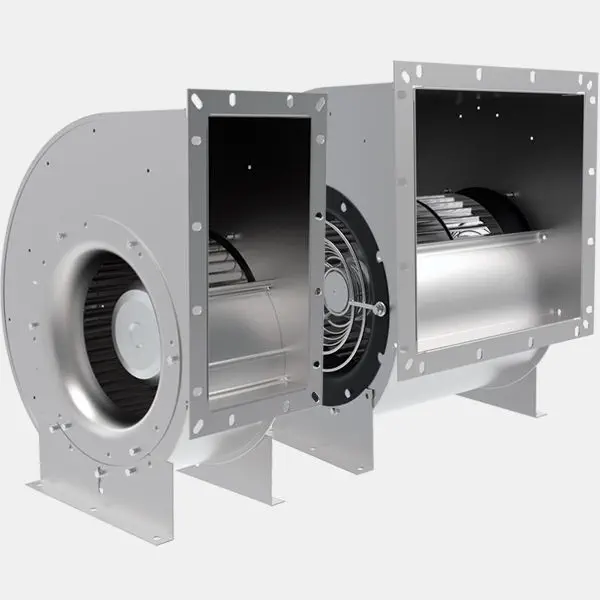

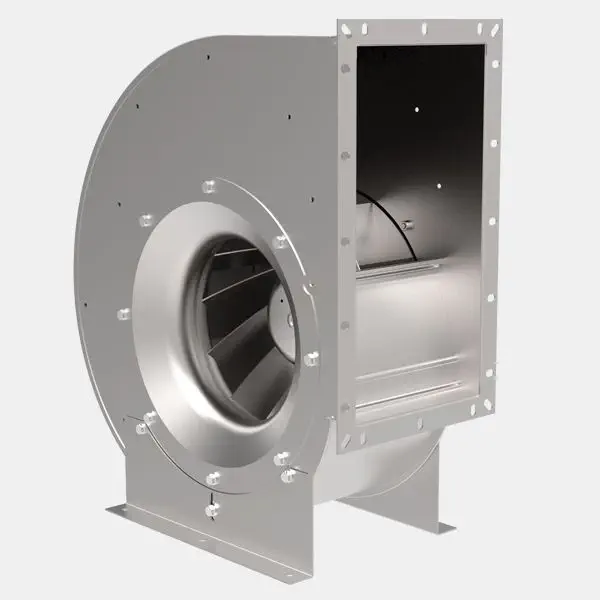

Casing
Casings are made of galvanised sheet steel. Side parts and the spiral-shaped guide plate are connected with rivets. In the side panels, there are holes for the fixing of the feet which can be implemented by 90°.
up to size 400
casing in spiral design
from size 450
casing in rectangular form
Impellers
The impellers are mounted directly on the rotors of the external rotor motors and are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11.
Electrical connection
The motors are fitted with an outgoing cable. The electrical connection is made via an IP44 terminal box which is supplied loose.
