نام محصول:
پنکه سقفی POWERFOIL X3.0
برند:
Big Ass Fan
نام انگلیسی:
Ceiling-mounted fan POWERFOIL X3.0
مشخصات:
Installation
ceiling-mounted
Configuration
axial
Material
aluminum
Other characteristics
IP55, industrial, large-diameter
توضیحات:

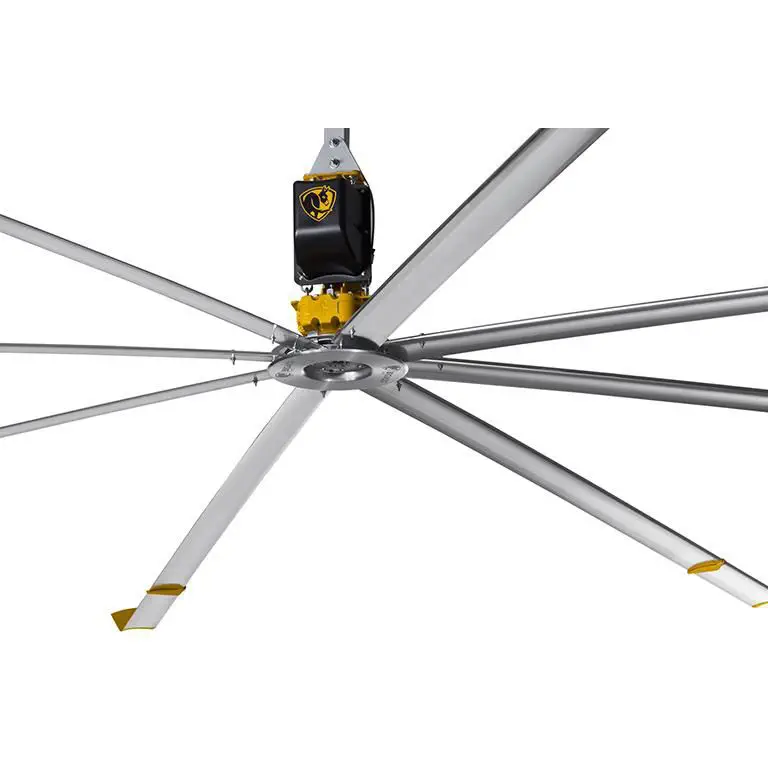

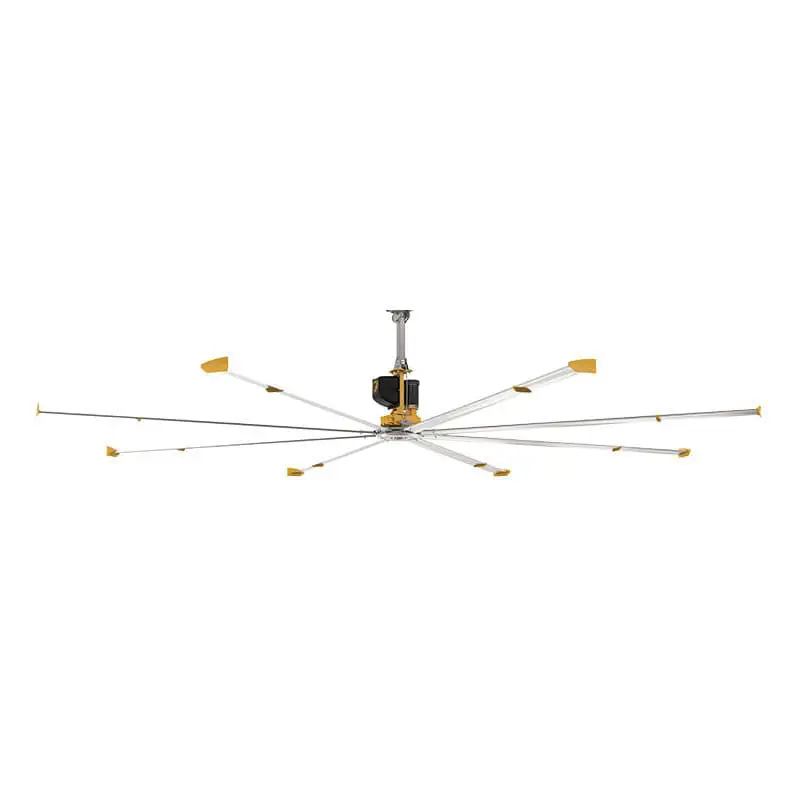

POWERFOIL®X3.0

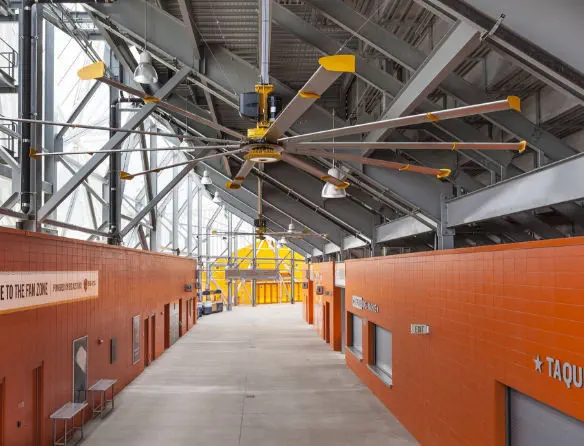

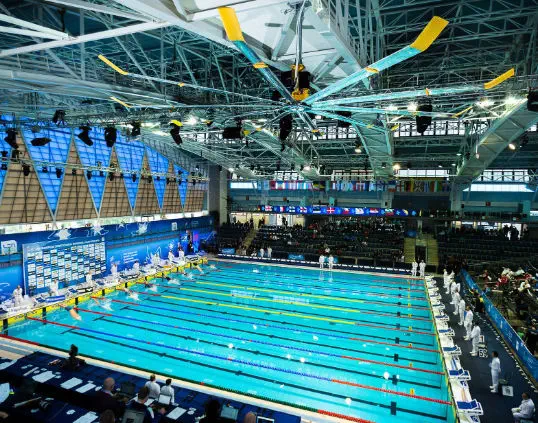

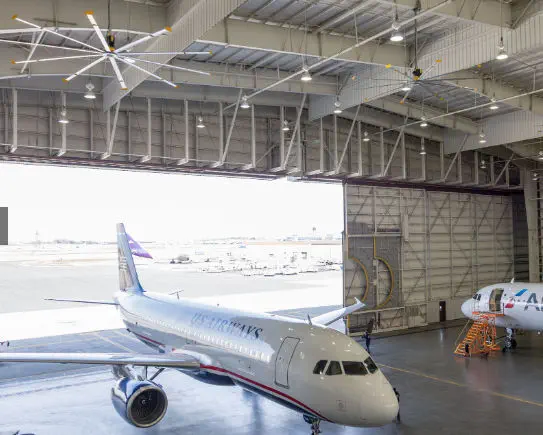

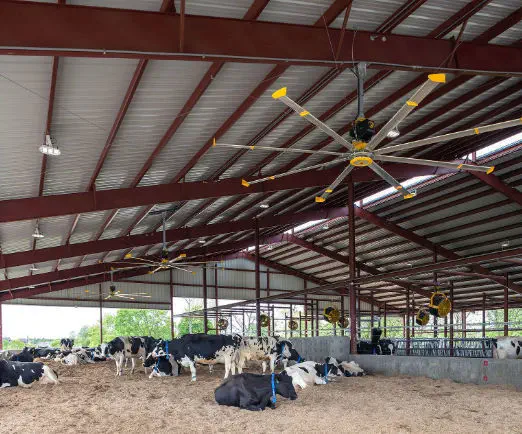

Powerfoil X3.0’s superior hub and airfoil systems deliver unmatched airflow to big spaces, powered by a purpose-built NitroSeal™ drive system and supported by world-class safety features. With premium materials and precise engineering, Powerfoil X3.0 offers the custom fit to improve comfort, safety, and efficiency in any application.
– Maintenance-free NitroSeal gearbox for a lifetime of dependable operation
– Motor and drive are rated IP43; with optional IP55 motor for harsh environments
– Pre-wired onboard VFD quickly dissipates heat and eliminates FRI and EMI noise
– Durable, oversized hub system with platform for optional occupancy sensor or LED
FEATURES

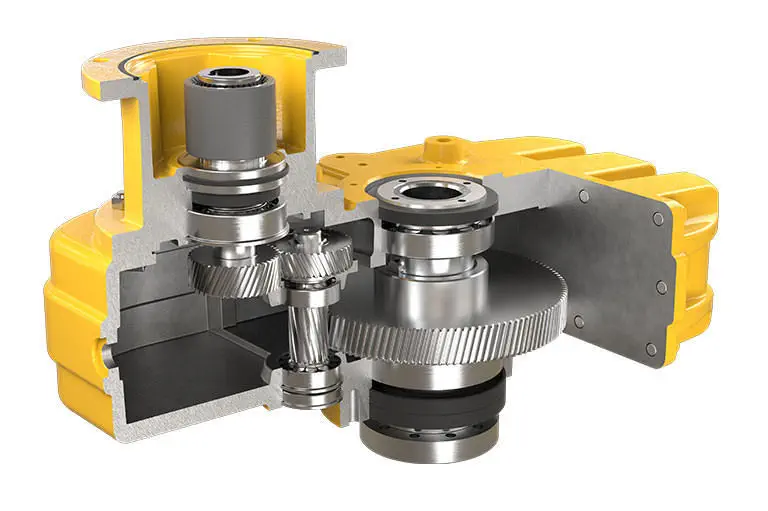

– Purpose-built for maximum durability and cool operation
– Features <11 arc minutes backlash HeliCamber gear technology, SKF tapered roller bearings, a 2 1/2-inch (6.3cm) hollow output shaft, Simrit double-lipped output seals and lifetime synthetic oil
– Nitrogen filled and hermetically sealed to prevent contaminants for zero maintenance
OPTIONS
– Pushes air at an angle, moving it over and around obstructions

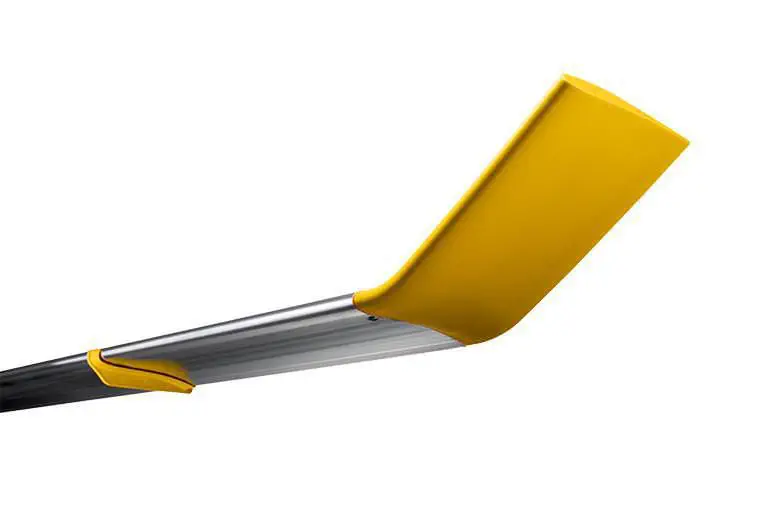

– Unique, aerodynamic airfoil and winglet design enhances both energy efficiency and airflow by eliminating turbulence at the airfoil tips
COLOR CUSTOMIZATION

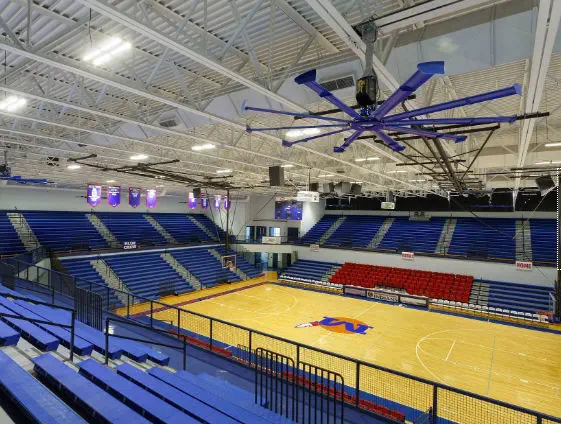

We like to think every one of our fans is an eye-catching centerpiece. But if you’d like your Powerfoil X3.0 to be something other than the standard silver and yellow, upgrade with any of our 8 classic colors, or specify one of your own. We can paint your fan any color in, over and beyond the rainbow.
a. Aluminum Foils
b. Winglets
c. AirFence® system
d. Gear Box
e. Motor
f. Mounting Frame/Post
g. Extension Tube
h. Lower Cover
