نام محصول:

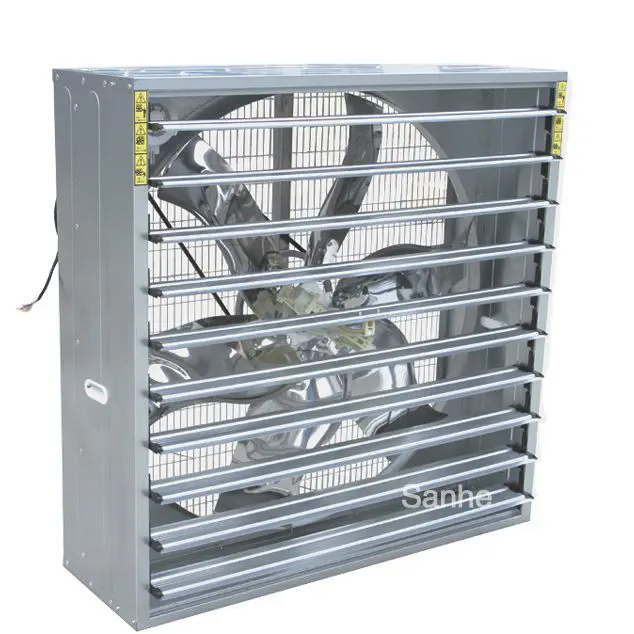

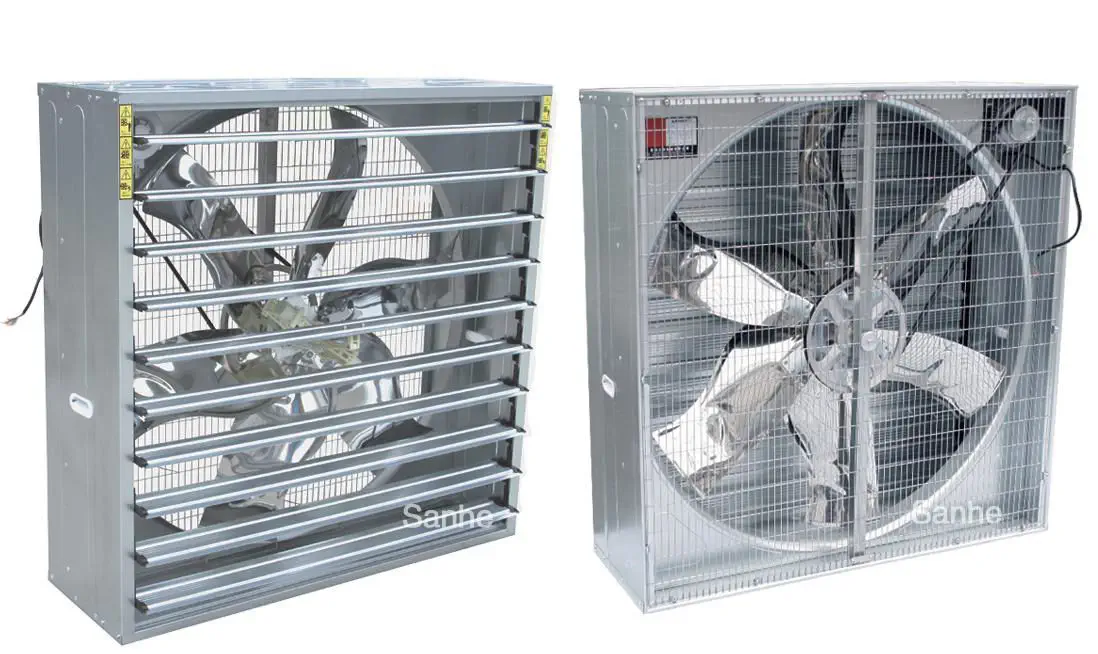

پنکه سانتریفیوژ سری DJF

برند:
Shandong Yuyun Sanhe Machinery Co., Ltd.

نام انگلیسی:
Centrifugal fan DJF series

مشخصات:
Configuration
centrifugal

Function
exhaust

Material
stainless steel

Other characteristics
direct-drive, belt-driven, flange, IP55, industrial

Air flow
10,600 m³/h, 21,000 m³/h, 44,000 m³/h (374,335.47 ft³/h)

توضیحات:

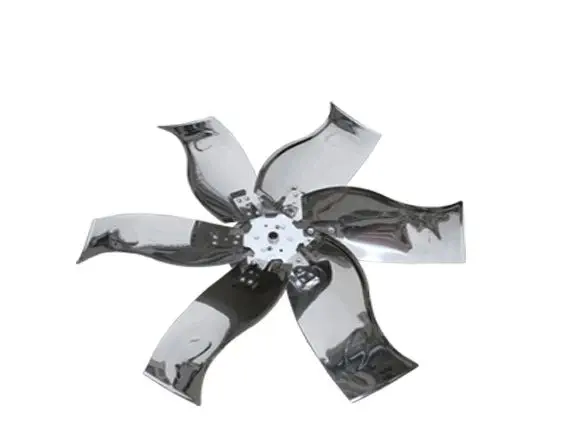

Sanhe fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.

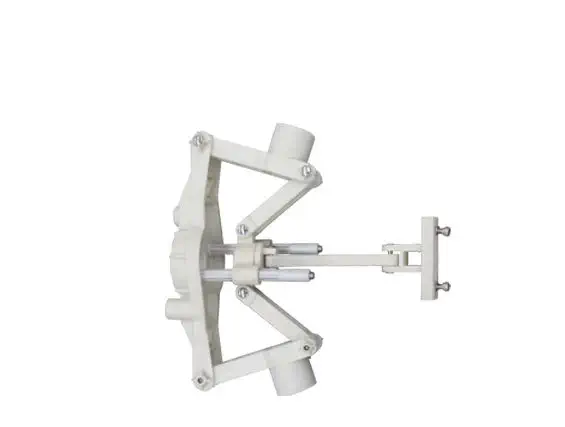

Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, reduce frication.

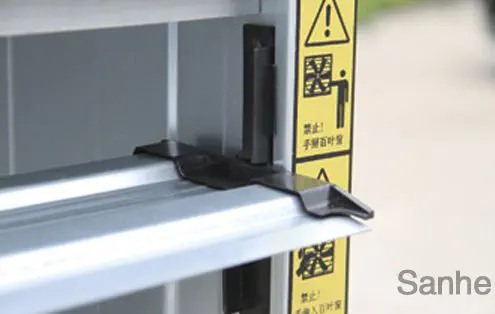

Shutter fixed parts are made of high quality nylon which ensure long service life, open flexibly. Shutters are made of galvanized sheet with thickness of 0.8mm and 1.5mm, ensure shutters no deformation, running stable.
Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. From 2010 the first adopt Type B belt which 3 times longer service life instead of type A.
Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade

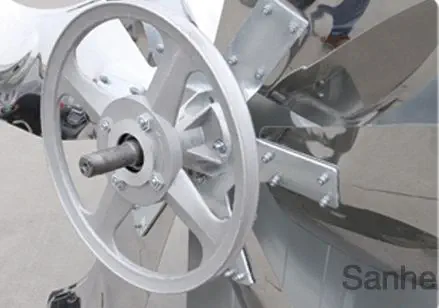

Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.
