نام محصول:

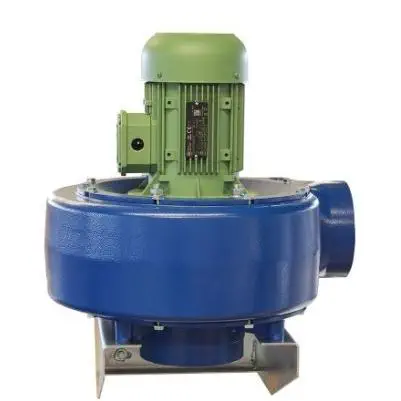

پنکه دیواری VR-108
برند:
Vanterm Isı ve Makina San. Tic. A.Ş.
نام انگلیسی:
Wall-mounted fan VR-108
مشخصات:
Installation
wall-mounted, duct
Configuration
propeller
Function
extraction, exhaust
Other characteristics
filter
Air flow
Max.: 1,950 m³/h (68,863.6 ft³/h)
Min.: 1,300 m³/h (45,909.07 ft³/h)
Rotational speed
3,000 rpm (18,850 rad.min-1)
توضیحات:

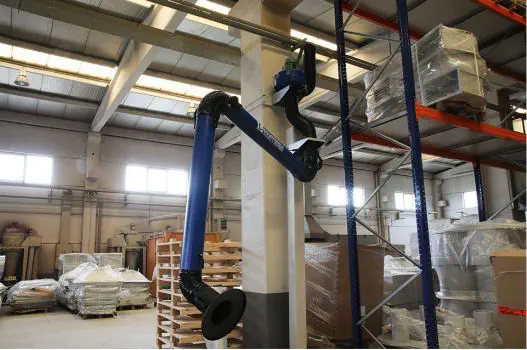

– Mostly used for extraction of welding smoke and dust. Very easy to assemble on a wall.

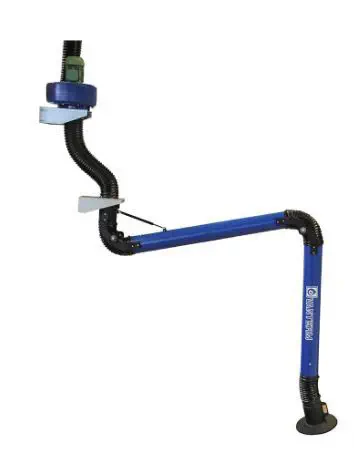

– VR-108 exhaust fan can be used together with EK-2 type extraction arm, which provides high efficiency-low
pressure drop, thanks to the external joints and its straight duct sections.
– When used with EK-2 type arms, VR-108 fan outlet must be connected to exhaust ducting.
– OPTION: When used with ECO:D wall-mounted filter unit, VR-108 fan can return the filtered-air back into the
hall.
– One VR-108 exhaust fan must be used for each EK-2 type extraction arm.
