نام محصول:

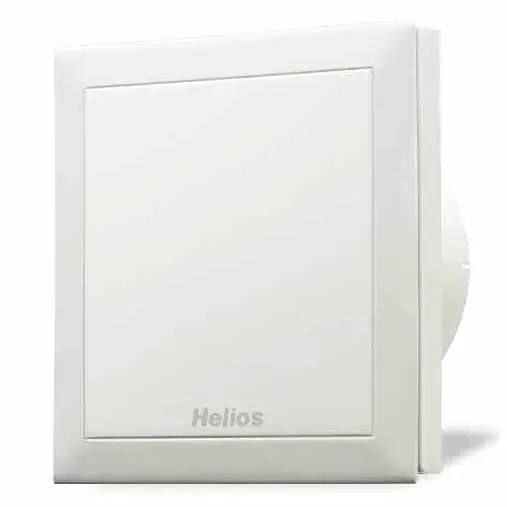

پنکه دیواری M1/120
برند:
Helios Ventilation
نام انگلیسی:
Wall-mounted fan M1/120
مشخصات:
Installation
wall-mounted
Configuration
axial
Function
ventilation
Other characteristics
compact, industrial
Air flow
Min.: 150 m³/h (5,297.2 ft³/h)
Max.: 170 m³/h (6,003.49 ft³/h)
توضیحات
Lowest power consumption of only 10 Watt (at vol. = 150 m3/h).
Extremely quiet due to the new ultraSilence® technology; just 32 dB(A)* (at vol. = 150 m3/h).
Achieves a volume/pressure of 120 m3/h air flow at 31 Pa.
Maximum air flow 170 m3/h, maximum pressure 53 Pa.
Where space is limited the guide vane of M1 can be simply removed. Thus reducing the installation depth to 70 from 116 mm.
Compact dimensions for flush mounted installation in walls, shafts or ceilings with nominal dia. 120/125 mm.
