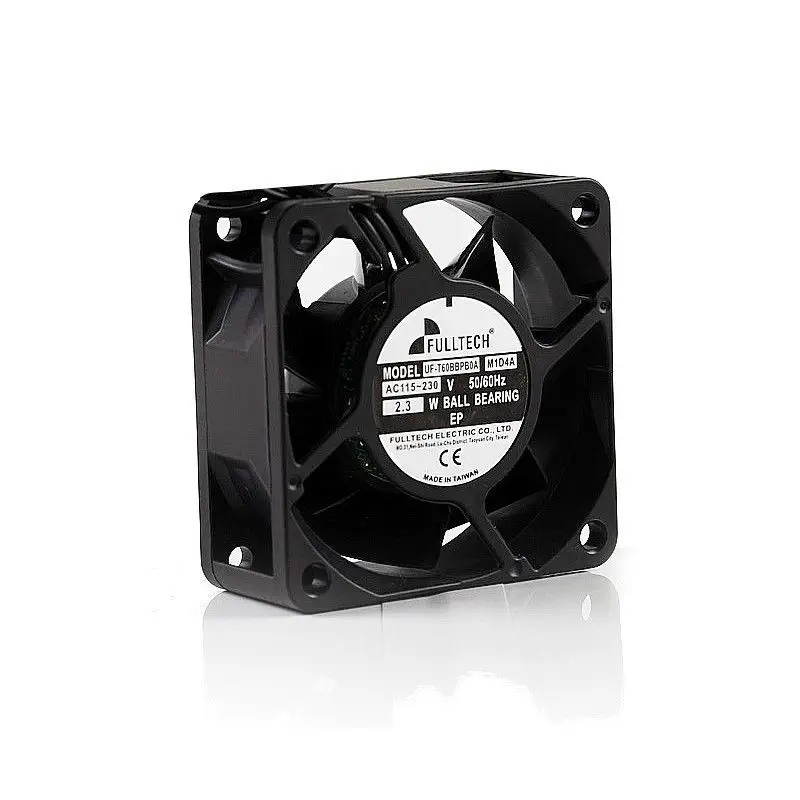

پنکه الکترونیکی سری Electronic fan UFT60BBPB SERIES- Fulltech Electric CO., LTD. -UFT60BBPB

نام محصول:
پنکه الکترونیکی سری UFT60BBPB

برند:
Fulltech Electric CO., LTD.

نام انگلیسی:
Electronic fan UFT60BBPB SERIES

مشخصات:
Installation
for electronics

Configuration
axial

Function
cooling

Drive mechanism
brushless motor, EC motor

Material
aluminum

Other characteristics
energy-saving

Air flow
0.54 m³/min, 0.55 m³/min (19.07 ft³/min)

توضیحات:
Frame/Housing: – Aluminum die-casting
Impeller: – Plastic or steel
Bearing System: – Ball bearing
Motor: – Brushless DC motor
Protection: – Electronically-Protected
Insulation Resistance: – Above 10MΩ, DC500V
Dielectric withstand voltage: – AC 1,500V (50/60Hz) one minute
Life Expectancy: – Ball bearing: Over 50,000 hr. (at 40℃)
Safety Approval: – CE .

Rated Voltage – 115~230 V – –
Frequency – 50/60 Hz – –
Input Power – 2.0(115V) 2.3(230V) W – –
Rated Current – 0.039(115V) 0.025(230V) A – –
Locked Current – 0.092(115V) 0.044(230V) A – –
Speed – 3850(115V) 3950(230V) RPM – –
Maximum Air Flow – 0.0.54(115V) 0.55(230V) m3/min. – –
Maximum Air Flow – 19.1(115V) 19.4(230V) CFM – –
Maximum Pressure – 4.3(115V) 4.6(230V) mmH2O – –
Maximum Pressure – 0.0.17(115V) 0.18(230V) InchH2O – –
Noise – 31 dB – –
Weights – 0.06 kg
