نام محصول:
پنل خورشیدی CE
نام انگلیسی:
CE solar panel HVL-395/HJT
برند:
Hevel LLC
مشخصات:
Up to 395 Wp (+69 Wp at 20% bifacial gain)
Module effi ciency up to 23,2 % (BiFi +20%)

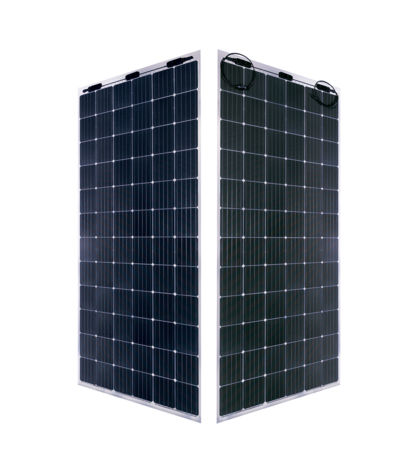

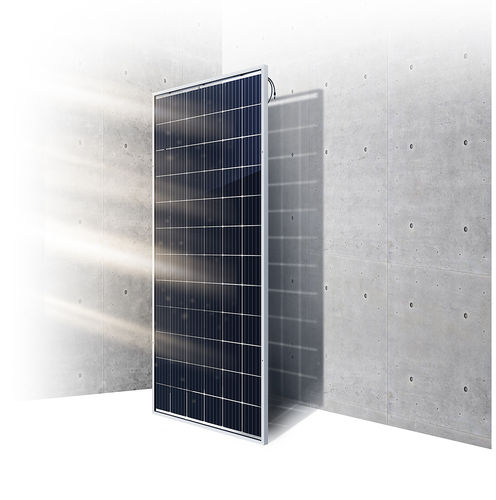

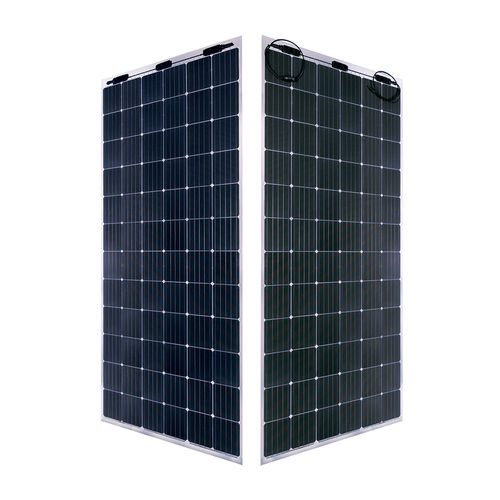

Glass-glass bifacial design
Operating temperatures from -40 to +85 °C
30 years linear performance warranty, 15 years product warranty
Less power losses at high temperatures due to low temperature coeffi cient
N-type wafer based HJT cell boasts extra low light induced (LID) and close to zero potential induced degradation (PID)
Max Power Current (Impp) – – 8.76 A
Short Circuit Current (Isc) – – 9.21 A
Open Circuit Voltage (Vос) – – 53.18 V
Module technology – – Heterojunction (HJT)
Max Power Voltage (Vmpp) – – 44.84 V
Temperature Coefficient, Vос – – -0.244 %/°С
Temperature Coefficient, Isc – – 0.055 %/°С
Temperature Coefficient, Pmax – – -0.285 %/°С
Maximum System Voltage – – 1500 V
Operating Temperature – – from -40 to +85 °С
‘NOCT – – 38.8 °С
Maximum Static Load, front – – 5400 Pa
Maximum Static Load, back – – 3800 Pa
Fire rating – – C
Number of sides – – 2
Weight – – 32 kg
Volume – – 0.066 m³
Junction Box: IP/bypass diodes – – IP65/3
Connector – – MC-4
Cable Cross Section – – to order/4 mm/mm²
Product Warranty, (materials and workmanship) – – 15 years
Linear performance warranty – – 30 years
توضیحات:
Certifications
CE, ISO, TUV
Other characteristics
black, IP65
Peak power (Wp)
395 W
