نام محصول:
پنل خورشیدی فتوولتائیک مونوکریستالی
نام انگلیسی:

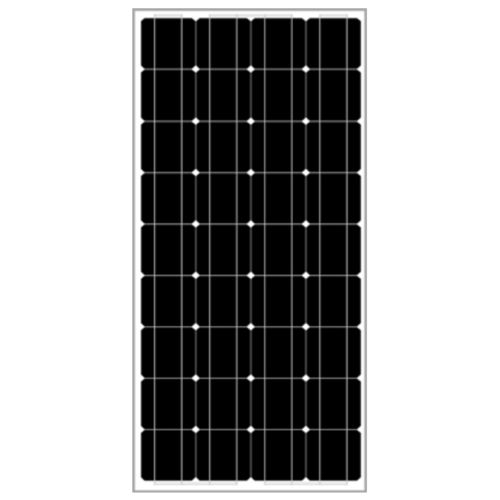

Monocrystalline silicon photovoltaic solar panel SI-ESF-M-M125 SERIES
برند:
SolarInnova
مشخصات:
Solar Innova uses the latest materials to manufacture photovoltaic modules.
Our modules are ideal for any application that uses the photoelectric effect as a clean energy source because of its minimal chemical pollution and no noise pollution.
The front of the module contains a tempered solar glass with high transmissivity, low reflectivity and low iron content.
These PV modules use high-efficiency, monocrystalline silicon cells (the cells are made of a single crystal of high purity silicon) to transform the energy of sunlight into electric energy. Each cell is electrically rated to optimize the behavior of the module.
The cell circuit is laminated using EVA (Ethylene-Vinyl Acetate) as a encapsulant in combination with a tempered glass on its front and a plastic polymer (Tedlar) on the back which provides complete protection and seals against environmental agents and electrical insulation.
The compact, anodized aluminum frame provides an optimal relationship-weight moment of inertia, to obtain greater rigidity and resistance to twisting and bending. It has several holes to attach the module to the support structure and ground if necessary.
The junction boxes with IP67, are made from high temperature resistant plastics and containing terminals, connection terminals and protection diodes (by-pass). These modules are supplied with symmetric lengths of cable, with a diameter of copper section of 4 mm and an extremely low contact resistance, all designed to achieve the minimum voltage drop losses.
توضیحات:
Material
monocrystalline silicon
Certifications
ISO, IEC
Other characteristics
high-performance
Peak power (Wp)
Max.: 290 WMin.: 100 W
