نام محصول:
پمپ
نام انگلیسی:
Oil pump
برند:
Williams Milton Roy
مشخصات:

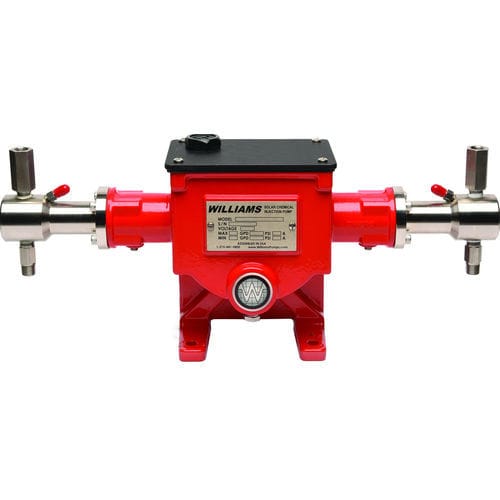

The Williams Solar Chemical Injection Pump (SCIP), previously known as the Solaroy®, is a highly efficient DC-powered injection pump operated by 12 or 24 VDC power. This solar pump was specifically designed from the ground up to handle a variety of flows and pressures while requiring the least amount of power, making this pump ideal for remote locations where power sources are limited.
The SCIP is available in Simplex or Duplex configurations depending on the flow requirements, easily determined using the Williams app available as a free download on iOS or Android app stores.
This solar pump can run continuously with flows from 2 to 100 gallons per day and pressures up to 5,000 psig. The liquid ends are 316 stainless steel with dual seals and ceramic plungers for long product life and excellent chemical compatibility.
Features
Single-stage reduction, spur gears and integral cam
Three (3) cam sizes (stroke length): 0.30 in., 0.45 in., 0.60 in.
Dual-seal proven design
No packing to adjust
Simplex and duplex heads
Explosion-proof (optional)
Plunger sizes (pressure capability): 1/4 in. (5,000 psi), 3/8 in. (2,500 psi)
Oil bath gear lubrication- to help ensure long life
Self-contained (quick-change) 316 stainless steel liquid end design
Plunger materials: 17-4ph stainless (standard)
Ceramic (optional)
Guided crosshead and seal
12 or 24 VDC power
UL/CSA approvals
توضیحات:
Fluid
oil
Operation
solar-powered
Technology
gear
Mobility
stationary
Domain
industrial, chemical, solar
Applications
injection
Material
stainless steel, ceramic
Voltage
24 V, 12 V
Protection level
explosion-proof
Other characteristics
standard, single-stage, flow, seal
Flow
Max.: 243.4 us gal/min(921.36923 l/min)Min.: 38.32 us gal/min(145.05698 l/min)
Pressure
Max.: 344.73 bar(4,999.886 psi)Min.: 6.89 bar(99.931 psi)
Power
0.04 kW(0.05 hp)
