نام محصول:
پمپ
نام انگلیسی:
Oil pump 3C series
برند:
Seko S.p.a.
مشخصات:

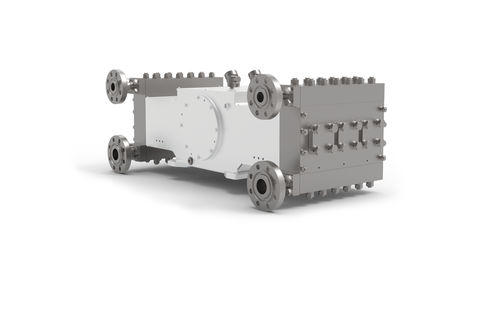

3C Triplex Pumps Series Process pumps for high-pressure duties
A flexible, robust and reliable solution to pumping high temperature, abrasive and viscous liquids in a multitude of industrial applications, the 3C Triplex pump series offers the best total cost of ownership available on the market.
3C Triplex pumps are designed in accordance with API 674 standards and can be customized to achieve special operating requirements, allowing the customer to build the ideal system for the unique demands of their application.
Pump Heads
Wetted parts: 316L or 304 stainless steel, duplex steel or carbon steel (exotic alloys available upon request)
The three-cylinder pump head is horizontally arranged, with single-acting plungers and valves and seats that can be selected among different executions depending on the handled fluid
Plungers and packing are easily maintained, with replacement of components for most pump sizes possible without disconnecting the pump from the pipework
Optional “leakage return to suction” and flushing of stuffing box guarantee a virtually leakage free process and for a longer packing life
Mechanism
The unique design of the 3C Triplex mechanism allows the pump to operate at a very low speed without forced lubrication, making it ideal for applications requiring a slow plunger motion to avoid cavitation when pumping hot or viscous liquids or fluids with high vapour pressure. The range features:
Silent and vibration-free operation due to proper mass balancing and sizing. The integral crankshaft and crossheads are supported at both ends, giving precise alignment of the plunger rods for a longer sealing life
توضیحات:
Fluid
oil
Operation
with electric motor
Technology
plunger
Mobility
stationary
Domain
industrial, for the chemical industry, for the food and beverage industry, for oil industry applications, for the mining industry, for the metallurgical industry
Applications
process, high-pressure, high-temperature
Fluid specification
for abrasive fluids
Protection level
robust
Other characteristics
triplex
Flow
Min.: 0.21 m³/h(7.41608 ft³/h)Max.: 67.69 m³/h(2,390.44979 ft³/h)
Pressure
Min.: 39 bar(565.647 psi)Max.: 1,146 bar(16,621.325 psi)
Power
Min.: 2.2 kW(2.99 hp)Max.: 110 kW(149.56 hp)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 200 °C(392 °F)
