نام محصول:
پمپ
نام انگلیسی:

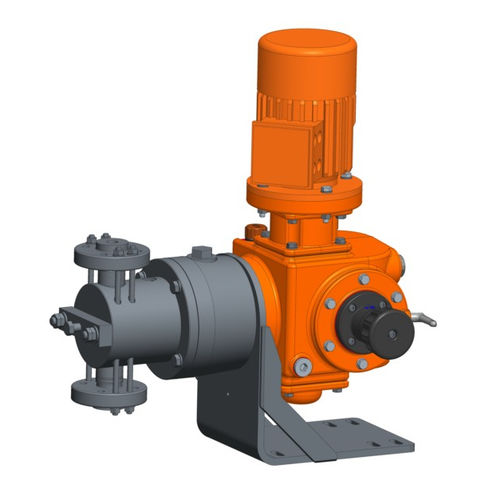

Plunger pump Orlita Evolution
برند:
ProMinent Group
مشخصات:
The high-performance plunger metering pump Orlita® Evolution 1 enables precise pump capacities even at maximum pressure and temperatures of up to +200 °C. The Orlita® Evolution pump has a modular construction and thus versatile uses.
Simple and flexible.
The Orlita® Evolution plunger metering pumps EP1a and EP2a form an integrated product range with stroke lengths of 15 mm. This covers a capacity range from 5 to 511 l/h at 293 – 8 bar. A wide range of drive versions is available, including some for use in Zone 1 or Zone 2 areas at risk from explosion with ATEX certification. The Orlita® Evolution product range is designed to comply with API 675.
Your benefits
Flexible adaptation to the process:
Precise capacity even at maximum pressure
Metering reproducibility is better than ± 0.5 % within the 10 – 100 % stroke length range under defined conditions and with correct installation.
Excellent hydraulic efficiency
Excellent flexibility:
The modular and compact construction with single and multiple pump versions permits a wide range of applications. In multiple pump systems up to 5 metering units can be combined, including units with different pump capacities
7 gear ratios are available
Power end configuration ideal for installation in any position (vertical or horizontal)
توضیحات:
Fluid
water
Operation
electric
Technology
plunger
Mobility
stationary
Domain
industrial
Applications
metering
Protection level
ATEX
Other characteristics
compact, high-performance, modular, integrated
Flow
Max.: 545 l/h(143.97377 us gal/h)Min.: 15 l/h(3.96258 us gal/h)
Pressure
Max.: 520 bar(7,541.962 psi)Min.: 9 bar(130.534 psi)
