نام محصول:

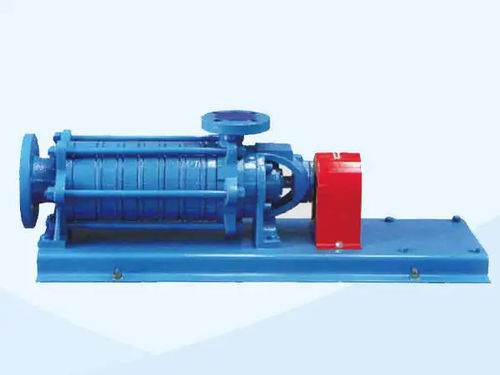

پمپ LPG
نام انگلیسی:
LPG pump DB-65
برند:
Zhejiang Datian Machine Co., ltd
مشخصات:
DB-65 multistage pump is a centrifugal pump, which adopts horizontal structure of 6 classes. And the shaft adopts mechanical seal without cooling. The pump is used for transferring LPG, especially it is high differential pressure, low NPSH and the gas of LPG up to 50% when pumping LPG from underground tank. The suction end of the pump adopts precompression turbine, which makes it better in use under the requirement of low NPSH. So this pump can work under the condition of bad suction.
Application :
LPG tank filling
Pumping LPG from underground storage
Bulk filling operations
Loading/unloading of oil tank trucks
Vapor recuperation
Technical Specification
• direction of rotation : anti-clockwise facing the end of of the
• pump drive shaft.
• Max. pressure : 40bars at 120℃
• speed : 1450rpm
• power : 380V,50Hz,4KW
• ambient temperature : 20℃-+60℃
• class : 6
• connecting flanges : DIN2501,PN40
• bearings : slip bearing at the pump end、ball bearing at the drive end
• lubrication : The slip bearing at the pump end lubricated by the pump liquid drive the ball bearing to self lubricate.
توضیحات:
Fluid
for LPG
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
unloading, loading
Material
metal
Voltage
380 V
Other characteristics
multi-stage
Flow
1 m³/h(35.31467 ft³/h)
Pressure
40 bar(580.151 psi)
Power
4 kW(5.44 hp)
Fluid temperature
Max.: 60 °C(140 °F)Min.: 20 °C(68 °F)
