نام محصول:
پمپ
نام انگلیسی:
Plunger pump 100 series
برند:
JAECO Fluid Systems
مشخصات:

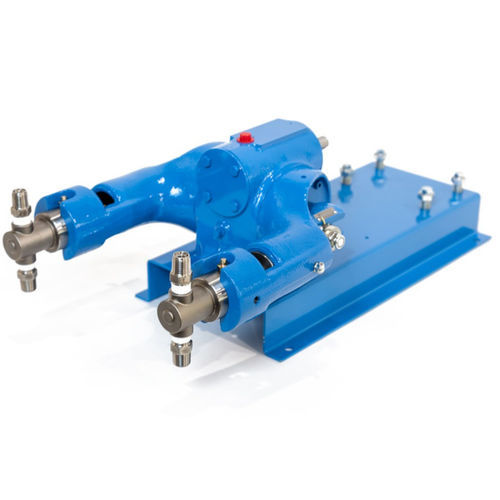

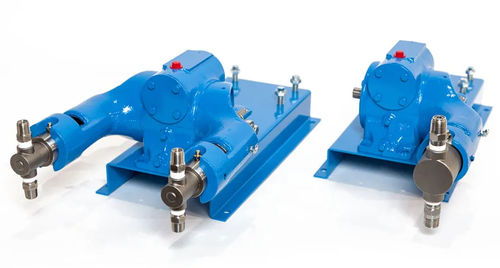

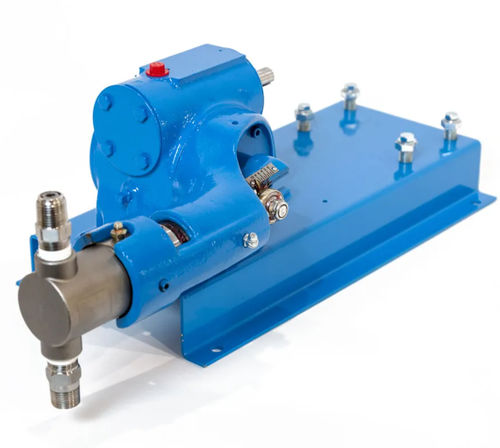

The JAECO PAK is a packed plunger metering pump with a streamlined design and rugged construction that provides low-cost, uninterrupted, trouble-free service for the continuous accurate metering of chemicals and solutions. The positive displacement supplies a simple and virtually maintenance-free approach to accurate chemical feed. This metering pump is available in both simplex and duplex models and field-convertible from simplex to duplex. The capacity is manually adjustable, but only while pump is stopped, as a safety precaution and for tamper resistance. The capacity is easily automated using a variable-speed drive.
JAECO PAK FEATURES & BENEFITS
Provides a simple and virtually maintenance-free approach to accurate chemical feed.
Stroke rate easily automated using variable-speed drive.
Capacity is manually adjustable, but only while pump is stopped, as a safety precaution and for tamper resistance.
Stroke length is adjustable for a turn-down ratio of 10:1.

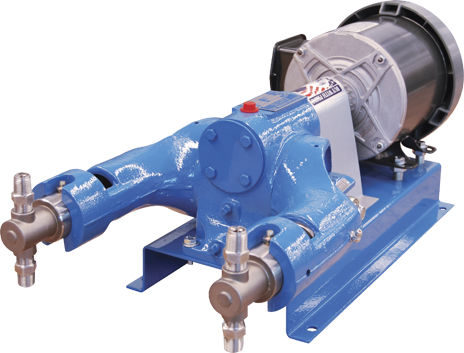

Available with or without motor.
Oil bath gear lubrication eliminates the maintenance required by auxiliary oil systems.
Single ball check valve, standard on both suction and discharge side of the pump, provides accurate metering and fast response. Valve ball turns with fluid flow, constantly presenting a new face to the seat, and is therefore self-cleaning.
Because it is a true positive displacement pump, a safety relief valve on all closed loop systems is required to prevent the possible overpressuring of the discharge line.
Packing adjustment screwed gland nut ensures even take-up and fewer packing problems.
Integral lantern ring for packing lubricant may be used for internal purging when handling
توضیحات:
Fluid
water, oil, air, for gas
Operation
hydraulically-operated
Technology
plunger
Mobility
stationary
Domain
industrial, chemical
Applications
metering, discharge, handling, service, lubrication
Material
stainless steel, PTFE, nickel alloy
Protection level
maintenance-free
Other characteristics
suction, standard, adjustable, rugged, variable-speed
Flow
Max.: 0.1577 l/s(0.04166 us gal/s)Min.: 0.03996 l/s(0.01056 us gal/s)
Pressure
Max.: 2,000 psiMin.: 75 psi
