نام محصول:
پمپ
نام انگلیسی:
Oil pump TPKe
برند:
HORN GmbH & Co. KG TECALEMIT
مشخصات:

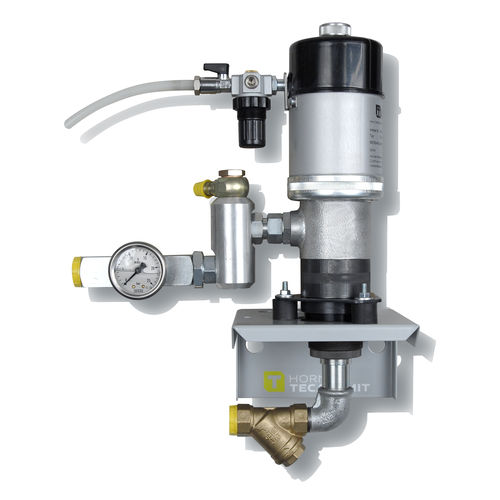

PNEUMATIC PUMP FOR FRESH OIL REMOTE OIL EQUIPMENT TPKE, LEGALLY CALIBRATABLE
This pneumatically-driven piston pump is used for the conveying of lubricants and similar fluids when the storage area and the dispensation area are in different places. The high-performance pumps work using a liquid-filled system and guarantee a consistently high delivery performance even with long pipe distances and high counterpressures. The double-action axial piston pump is driven by an oscillating pneumatic motor with automatic reversing gear. Additional features include an oil pressure regulator, automatic shut-off as well as a vibration-absorbing rubber mounting and wall bracket. The design-approved, flexible pressure connector, as well as special suction lines for original containers and for various tank designs enable easy assembly and installation. Oil delivery systems for commercial activities are subject to legal calibration requirements.
Description
For engine oil, gear oil, hydraulic oil and radiator antifreeze
Continuous overflow
Air pressure regulator
Air connection hose with plug
Suction connector with G 3/4 dirt trap
Without suction line, without pressure line
توضیحات:
Fluid
oil
Operation
pneumatic-drive
Priming
self-priming
Technology
axial piston
Mobility
stationary, mobile
Domain
industrial
Applications
conveying
Fluid specification
for engine oil
Other characteristics
high-performance, oscillating
Flow
10 l/min(2.64172 us gal/min)
Pressure
16 bar(232.06 psi)
Fluid temperature
Max.: 60 °C(140 °F)Min.: 10 °C(50 °F)
Length
360 mm(14 in)
Width
170 mm(6.69 in)
Height
445 mm(17.52 in)
Weight
7 kg(15.43 lb)
