نام محصول:
پمپ
نام انگلیسی:
Oil pump IC series
برند:
EMMECOM SRL
مشخصات:

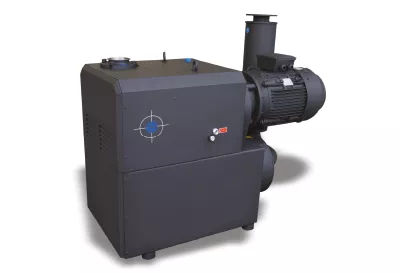

The ICV-ICP series pumps are dry contact-less vacuum and compressor pumps with modular constructions consisting of compartments: pumping and gear chambers are separated by labyrinth seals. When the two claws rotate in opposite direction the air is sucked in the pumping chamber, compressed and discharged under pressure.
In the gear chamber two gears with appropriate oil lubrication are placed for synchronizing the claws rotation.
A built in anti-suck back valve installed in inlet flange will prevent the air from flowing back into the vacuum chamber when the pump is shutdown. The pumps are directly driven by a flanged motor through a coupling.
Features
Simple modular construction
Air cooled & direct driven
Low maintenance – no wear
High effi ciency – continuous duty
توضیحات:
Fluid
oil, air
Operation
electric
Technology
gear
Domain
industrial
Applications
lubrication
Material
ABS
Other characteristics
modular, flange, dry
Flow
Max.: 1,000 m³/h(35,314.66672 ft³/h)Min.: 60 m³/h(2,118.88 ft³/h)
Pressure
50 mbar(0.725 psi)
