نام محصول:
پمپ
نام انگلیسی:

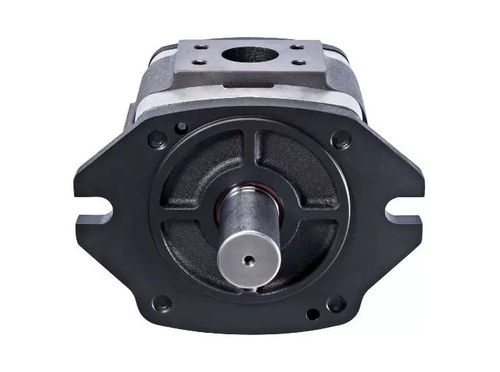

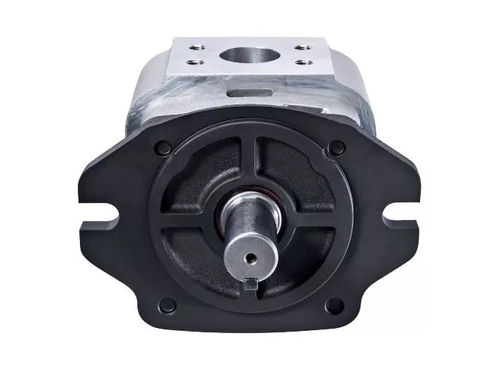

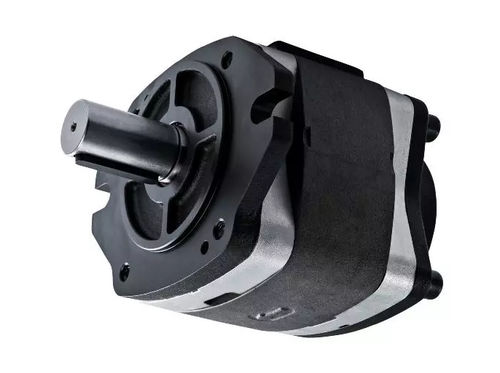

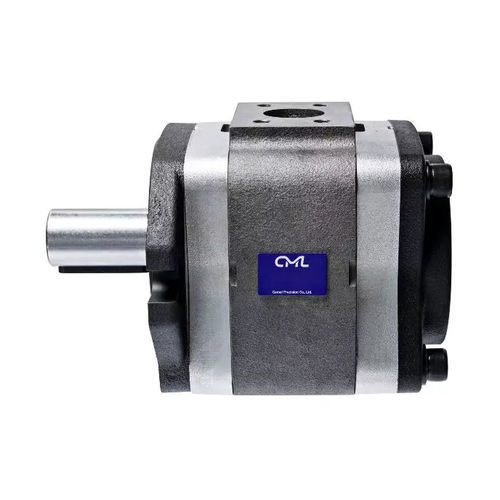

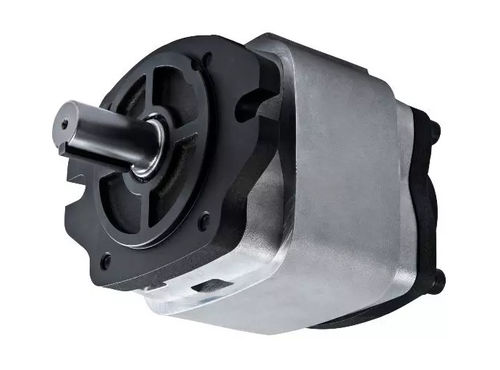

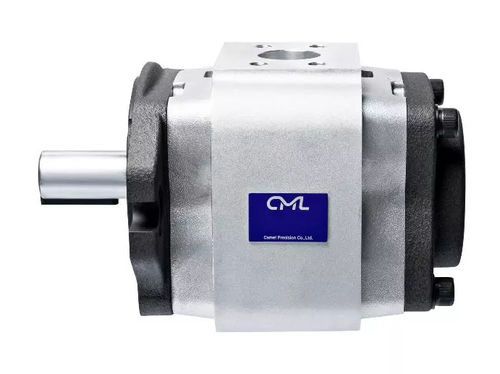

Oil pump IGP-5E-40-R
برند:
Camel Precision Co., Ltd.
مشخصات:
is specially designed and developed for matching with servo motors, especially suitable for the working conditions with frequent high-low RPM switching (such as that of Injection Molding machine and Extrusion Molding machine). It provides excellent pressure holding performance under low RPM, also it responds quickly to the switching operations between different speeds; there are advanced radial and axial pressure compensation designs inside the pumps, very low pressure loss and pulsation, stable output; high efficiency, low power consumption…, which is the best choice for servo energy-saving system.
CML’s products are widely used in all kinds of manufacturing machinery, metal processing machinery, mobile machinery, hydraulic systems, servo systems, and integrated hydraulic oil and electricity application.
Combining the characteristics of different Hydraulic pumps to achieve low noise creates a friendly working environment, low energy consumption joins environmental protection. Low consumption for cost-saving, etc., Most importantly, it can greatly improve the accuracy and stability of mechanical operation and maximize customer benefits.
CML (Camel Precision Co., Ltd.) is one of the leading manufacturers in Taiwan, as a hydraulic total solution provider, dedicated to the manufacture and sales of hydraulic products, assisting customers in building their customized power units and hydraulic systems.
Feature
Max. Speed: up to 3,000 RPM.
Provide a comfortable working environment with lower noise output.
Smooth operation & low pulsation.
High overall efficiency from axial & radial pressure compensation.
Good suction power and extensive oil viscosity range
توضیحات:
Fluid
oil
Operation
hydraulic motor
Priming
self-priming
Technology
gear
Mobility
stationary
Domain
industrial
Applications
injection
Material
metal
Other characteristics
suction, mechanical, axial, radial, mobile, integrated
Flow
Max.: 0.125 l/min(0.03302 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
Max.: 300 bar(4,351.132 psi)Min.: 210 bar(3,045.792 psi)
Weight
Max.: 38 kg(83.78 lb)Min.: 14.5 kg(31.97 lb)
