نام محصول:
پمپ 2 پیچ
نام انگلیسی:
2 screws pump L2N
برند:
Leistritz Pumpen GmbH
مشخصات:

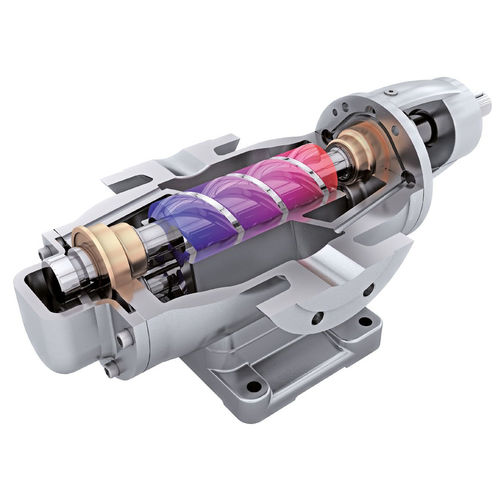

Leistritz screw pumps in the L2 range are twin-screw, single-volute, self-priming positive displacement pumps for the low-pressure range. They are used to pump slightly aggressive, slightly abrasive, low to high-viscosity fluids with good to poor lubrication properties.
Leistritz screw pumps of the L2NG series, are self-priming positive displacement pumps for a pressure range up to 16 bar (232 psi), suitable for transport of light abrasive and corrosive, high or low viscous fluids with poor or good lubricity.
User benefits:
↗ High efficiency > Low operating costs
↗ Only one shaft seal > low-maintenance
↗ Suitable for short dry runs > Maximum process reliability
↗ Radial bearing brushes > Long service life
↗ Axially balanced rotors > no axial forces to bearings
↗ Low axial flow velocity > excellent priming
↗ Resistant against aeration > low noise, minimized vibration
↗ Availability of sealless design by magnetic drive
توضیحات:
Fluid
for coolant, for crude oil, oil, fuel oil, diesel fuel, for bitumen and asphalt, for gas
Operation
with electric motor
Priming
self-priming
Technology
2 screws
Mobility
stationary
Domain
industrial, for the chemical industry, for oil industry applications, for marine applications, for renewable energy
Applications
transfer, discharge, cooling, circulation, chemical process, for industrial applications, control, unloading
Fluid specification
for aggressive media, for abrasive fluids, for low-viscosity fluids, for medium-viscosity products, for corrosive fluids, for high-viscosity fluids, for mineral oil
Protection level
chemical-resistant
Other characteristics
compact, high-efficiency, heavy-duty, high-performance, low-noise, high-flow, low-pressure, electronic
Flow
Min.: 12 m³/h(423.776 ft³/h)Max.: 900 m³/h(31,783.20005 ft³/h)
Pressure
Min.: 4 bar(58.015 psi)Max.: 16 bar(232.06 psi)
Fluid temperature
280 °C(536 °F)
