نام محصول:
پمپ چسب 3VMP22

نام انگلیسی:
Adhesive pump 3VMP22

برند:
ViscoTec Pumpen- u. Dosiertechnik GmbH

مشخصات:
Fluid
for adhesives

Technology
progressive cavity

Domain
industrial

Applications
metering

Fluid specification
for high-viscosity fluids

Pressure
10 bar, 30 bar
(145.038 psi, 435.113 psi)

توضیحات:

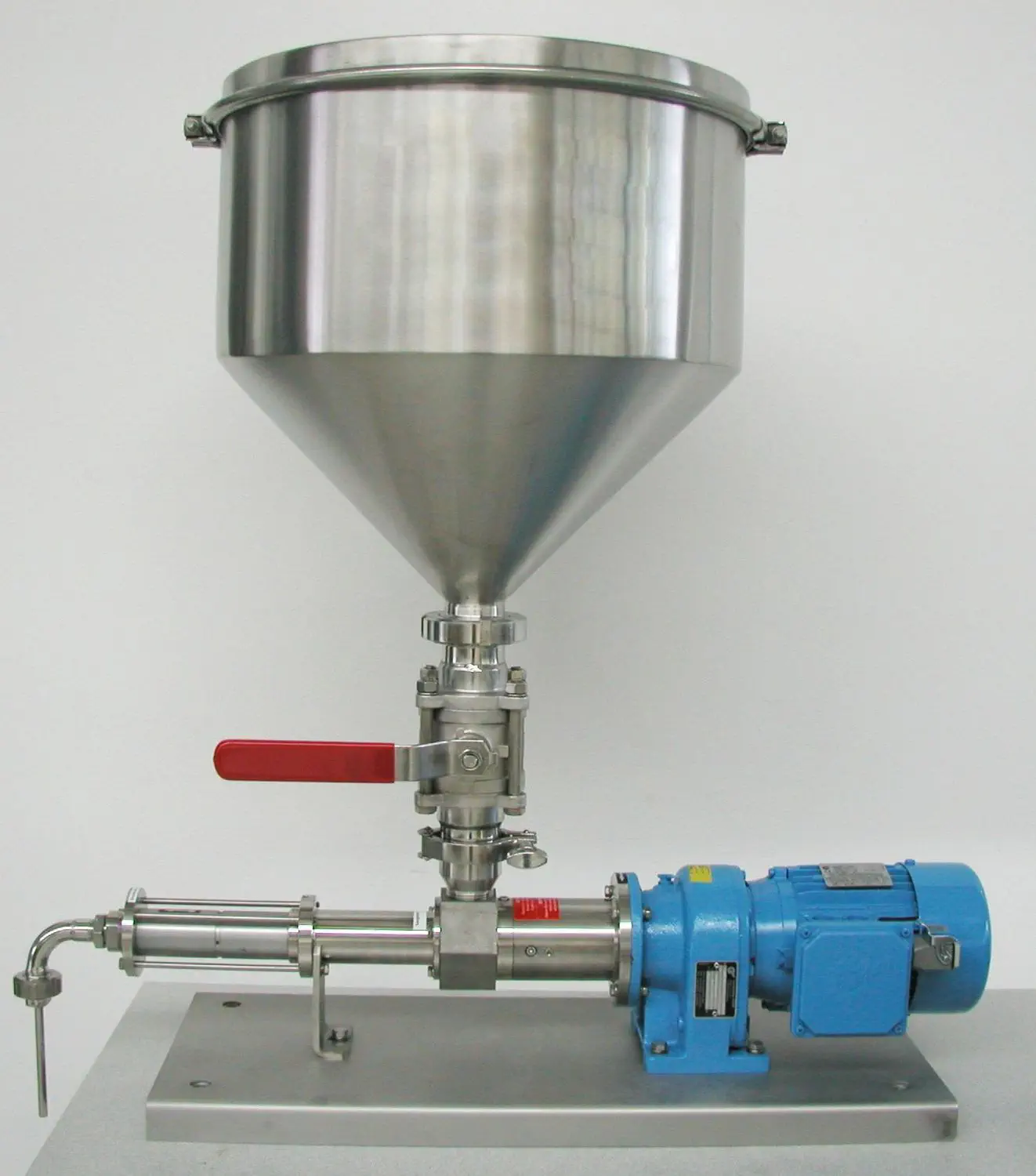

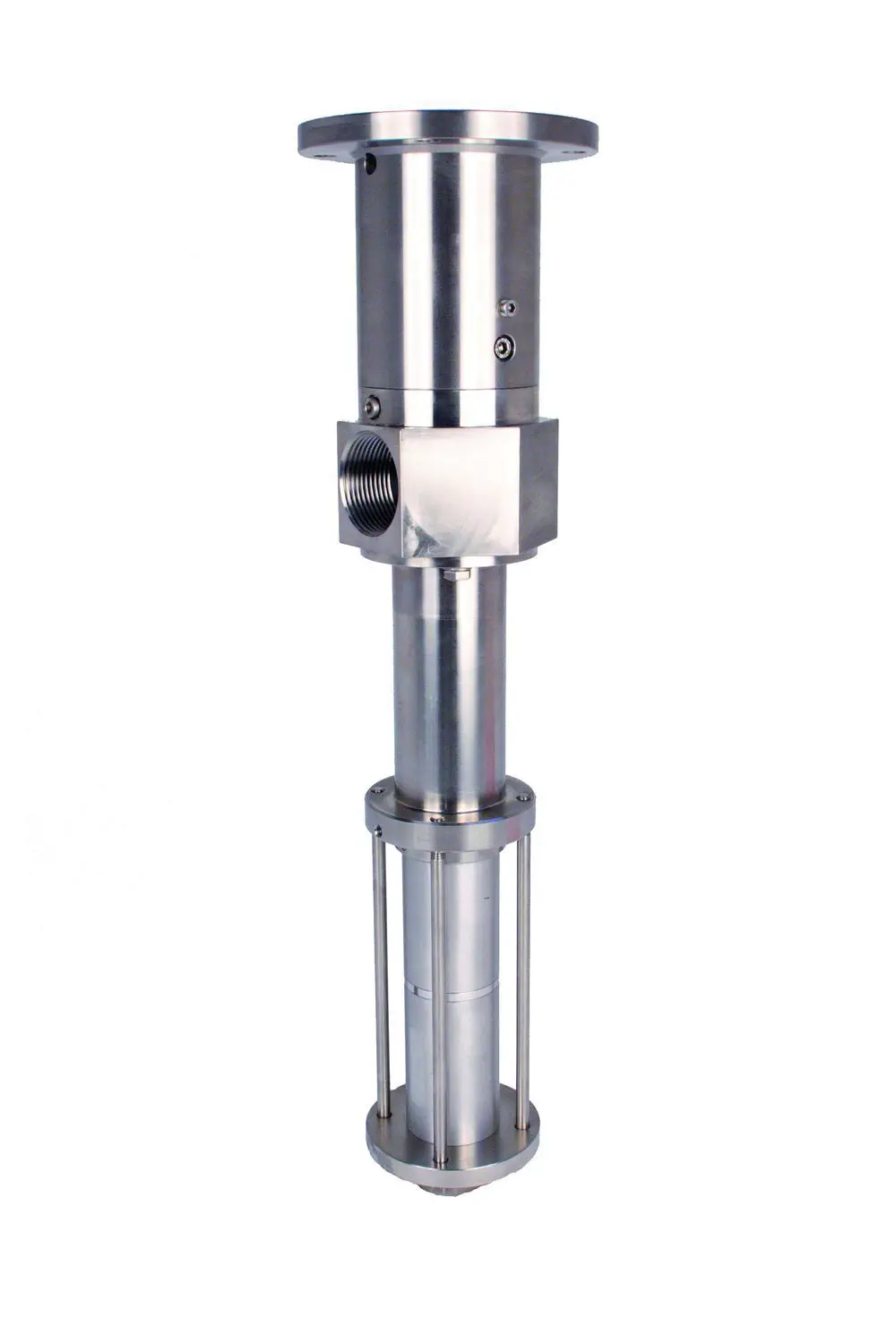

ViscoTec dispenser 3VMP22, as a volumetric dispensing pump for larger volumes, ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material – with a repeatability of +/- 1 %!

Absolutely precise, consistent and reliable dosing of a wide variety of materials and pumping of larger volumes. Thanks to the special rotor-stator geometry, a valve to prevent material from automatically flowing out is not required. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.

Your advantages:
– no dripping or stringing of product due to reverse-flow
– linear relation between drive speed and dosing volume
– constant dosing volume, also with density, viscosity and temperature fluctuations
– reliable dosing without heating of material
– driven by servo or AC motor
– easy programming of quantity and speed
– low maintenance, quick dismantling
– self-priming, no (or low) product input pressure required (depends on material)

Application:
– dot application, bead application, variable quantities possible
– dosing of all low and high viscosity adhesives and sealants (not anaerobic products)
– particularly suitable for abrasive, high-filled or shear sensitive material
– also used in barrel emptying systems

Technical data:
– dosing volume: ~ 13.5 ml/rev.
– min. dosing quantity: 0.75 ml *
– operating temperature: +10° to +100°C *
– material temperature: -20° to +100°C *
– max. speed: 125 rpm *
– max. permissible torque: 8 Nm
– max. dosing pressure: 30 bar *
– max. supply (input) pressure: 10 bar *
– weight: approx. 8,000 g
* depends on material
