نام محصول:
پمپ چرخدار خارجی
نام انگلیسی:

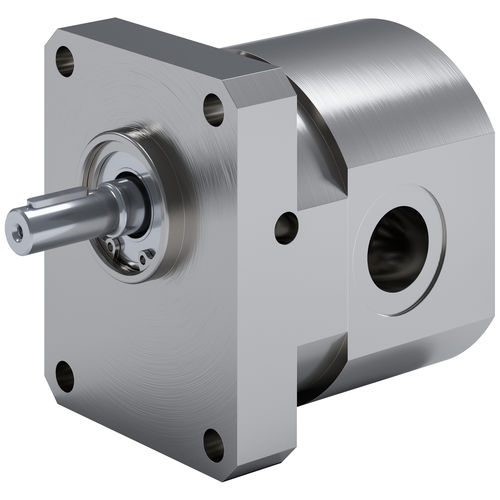

External-gear pump KF 0
برند:
KRACHT GmbH
مشخصات:
The dosing of liquids is the main task in numerous process engineering processes. PU components, plasticisers, resins, adhesives, lacquers and paints are some of the most important liquids with a wide range of applications.
The accuracy, evenness and reproducibility with which these liquids can be processed are decisive for the quality of the end product. The KF 0 stainless steel gear pump is particularly suitable for these applications. The KF 0 stainless steel is an external gear pump with flow rates of 1 cm³/rev to 4 cm³/rev. The grading of the total of 4 nominal sizes makes it easier to set the desired dosing ratios.
توضیحات:
Fluid
for chemicals, oil, fuel
Operation
magnetic-drive
Technology
external-gear
Domain
industrial
Applications
transfer, metering, process, chemical process, lubrication, for industrial applications
Flow
Max.: 5.7 l/min(1.50578 us gal/min)Min.: 0.5 l/min(0.13209 us gal/min)
Pressure
Max.: 120 bar(1,740.453 psi)Min.: 0 bar(0 psi)
Power
Max.: 1.46 kW(1.99 hp)Min.: 0.06 kW(0.08 hp)
Fluid temperature
Max.: 200 °C(392 °F)Min.: -30 °C(-22 °F)
Weight
2.2 kg(4.85 lb)
