نام محصول:
پمپ پیستون
نام انگلیسی:

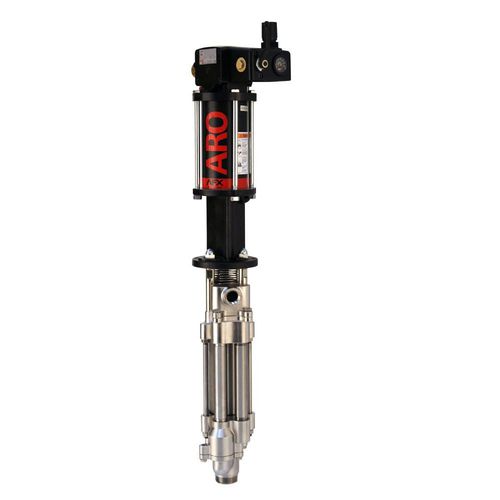

Piston pump AF0402MXXXXXX
برند:
ARO, Ingersoll Rand
مشخصات:
4-ball Piston Pumps & Packages are designed to transfer high volumes of low- and medium-viscosity fluids up to 12,500 cPs with fluid delivery up to 32.8 gpm (124.0 L/min), depending on the application.
Applications advantages of 4-balls:
Transfer & Supply: 4-ball pumps are designed to move high volumes of fluids in order to minimize time spent filling or emptying large containers. The high flow rate is a result of double-acting pumping (draws material on the upstroke and downstroke) and is ideal for the large scale transfer of paints, chemicals, varnishes, enamels, lacquers and other low-to-medium viscosity fluids.
Another common application: circulating fluid from the original container to the point of use, and then back.
توضیحات:
Fluid
for food products
Operation
pneumatic
Technology
piston
Domain
industrial
Applications
recirculation, transfer
Material
stainless steel
Other characteristics
four-ball
Flow
Min.: 0 l/min(0 us gal/min)Max.: 80.6 l/min(21.29227 us gal/min)
Pressure
Min.: 4.1 bar(59.465 psi)Max.: 21.5 bar(311.831 psi)
