نام محصول:
پمپ پیستون هیدرولیک
نام انگلیسی:

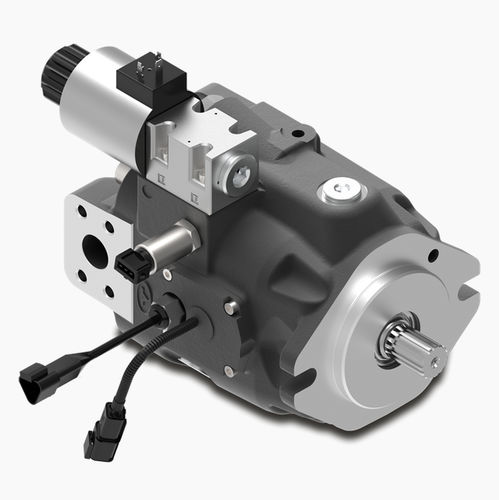

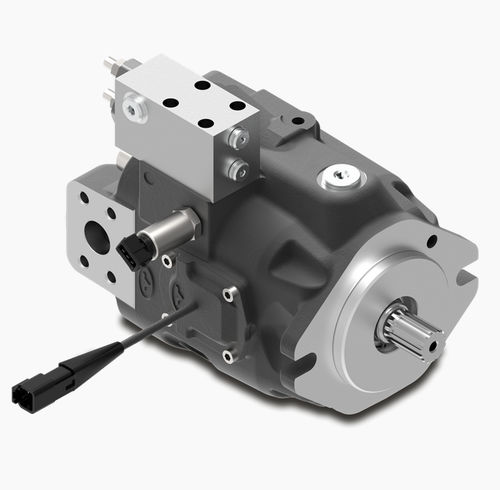

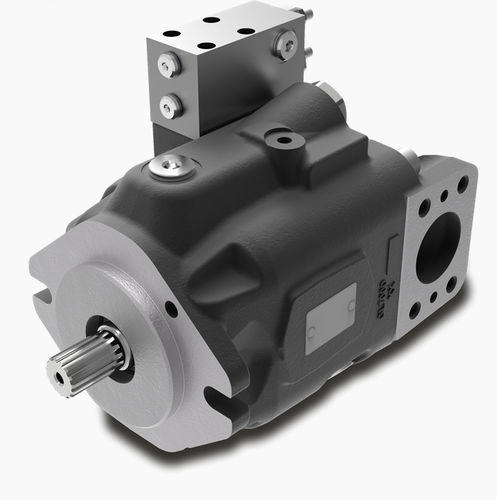

Hydraulic piston pump PWLS7
برند:
WALVOIL
مشخصات:
Walvoil presents PWLS, the new range of Variable Displacement Piston Pumps.
PWLS series offers all the features needed for a new generation of mobile hydraulic implement pumps.
Its compact design allows the installation in narrow spaces, its reactivity and stability grant the maximum comfort for the operator.
The design and production cycle allows heavy duty operation in the medium pressure range, with a nominal service pressure up to 280 bar (4050 psi).
Additional features, like sensors cavities, compact tandems and various control manifolds complete the offer of this new generation of Wavoil piston pumps.
The typical application varies from construction machines, like Skid Steer Loaders, Telehanders and Excavators to lifting and transport for application as Aerial Lifts and Fork Lifts.
Displacement cm ³/giro – (in ³/rev): from 56 to 80 (from 3.41 to 4.88)
APPLICATIONS
AGRICULTURE
Machine integrated, efficiency and sustainability are the key words of Walvoil’s solutions and systems for agricultural machinery.
CONSTRUCTION AND EARTH MOVING
High performance, energy saving and controllability are the main features of Walvoil’s integrated proposals dedicated construction and earth moving machines.
MATERIAL HANDLING
Strength, precise and smooth movement control, compact hydraulics and operator’s comfort are our focus when we design our customers’ solutions.
INDUSTRIAL VEHICLES
Discover our integrated solutions serving reliability and safety.
توضیحات:
Type
piston
Operation
hydraulically-operated
Applications
for industrial applications, for vehicles, handling
Other characteristics
compact, heavy-duty, integrated
Pressure
Min.: 0 bar(0 psi)Max.: 280 bar(4,061 psi)
Speed
Min.: 0 rpm(0 rad.min-1)Max.: 3,000 rpm(18,850 rad.min-1)
Weight
25.9 kg(57.1 lb)
Fluid viscosity
2 m²/s
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 80 °C(176 °F)
