نام محصول:
پمپ پیستون هیدرولیک
نام انگلیسی:

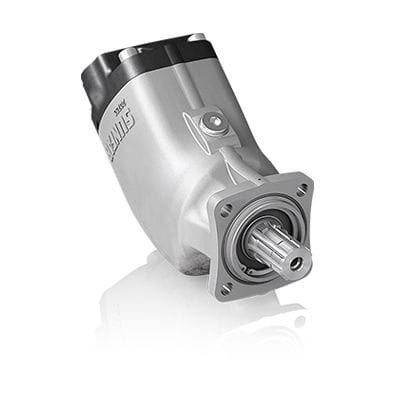

Hydraulic piston pump SAP/SAPT 012-130 DIN
برند:
Sunfab Hydraulics
مشخصات:
SAP 012-108 DIN covers the displacement range 12-108 cmᶟ⁄rev. at a maximum pressure of 400 bar. It is a modern, compact pump which meets the market’s high demands on flow performance, pressure, efficiency and small installation dimensions. The pump is either mounted directly on the power take-off or on a frame bracket via an intermediate shaft.
SAPT 090, 130 is an addition to the SAP series that supports larger flows and pressure up to 300 bar. Ideal for applications that require both a high flow and a high working pressure.
PRODUCT BENEFITS
• Light weight metal casing design
• Smooth operation over the entire speed range
• Long life due to high demands on material selection, such as bearings, seals, etc
• Corrosion free light metal-housing
• Less heat generation due to better ability to dissipate heat through housing
توضیحات:
Type
piston
Material
metal
Other characteristics
compact, small
Pressure
400 bar(5,802 psi)
Flow rate
Max.: 195 l/min(51.51 us gal/min)Min.: 6 l/min(1.59 us gal/min)
Speed
Max.: 3,000 rpm(18,850 rad.min-1)Min.: 500 rpm(3,142 rad.min-1)
Weight
Max.: 13.9 kg(30.64 lb)Min.: 6.9 kg(15.21 lb)
