نام محصول:
پمپ پیستون هیدرولیک
نام انگلیسی:
Hydraulic piston pump 729124
برند:
SKF Maintenance,Lubrication and Power Transmission
مشخصات:
Hydraulic pump 100 MPa (14 500 psi)

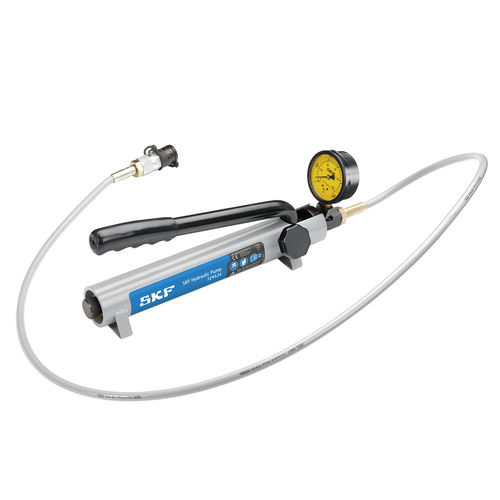

The 729124 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 54E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14 500 psi) is required. The pump is supplied with 1 500 mm (59 in.) pressure hose, quick connect coupling and mating nipple and pressure gauge. The pump is filled with SKF Mounting fluid LHMF 300 and is supplied with an extra litre of fluid.
Special execution 729124DU

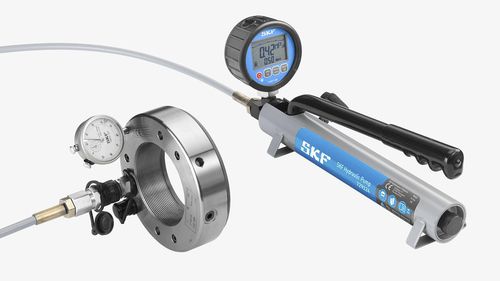

729124 including THGD 100 digital pressure gauge for use with the SKF Drive-up Method.
* Oil container capacity 250 cm³ (15 in.³)
* Fitted with a pressure gauge

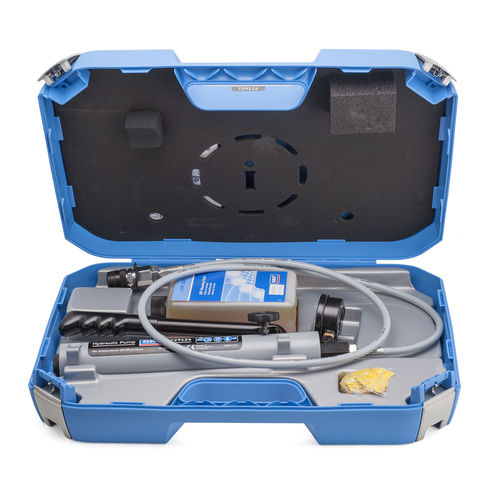

* Packed in a sturdy protective case
Applications
* SKF hydraulic nuts smaller than or equal to HMV 54E
* Oil injection applications where the maximum pressure is 100 MPa (14 500 psi)
توضیحات:
Type
piston
Operation
lever
Applications
for hydraulic nuts
Other characteristics
high-pressure, oil, hand-held, transportable, with pressure controller
Pressure
Min.: 0 MPaMax.: 100 MPa
Weight
3.5 kg(7.72 lb)
