نام محصول:
پمپ پیستون هیدرولیک
نام انگلیسی:

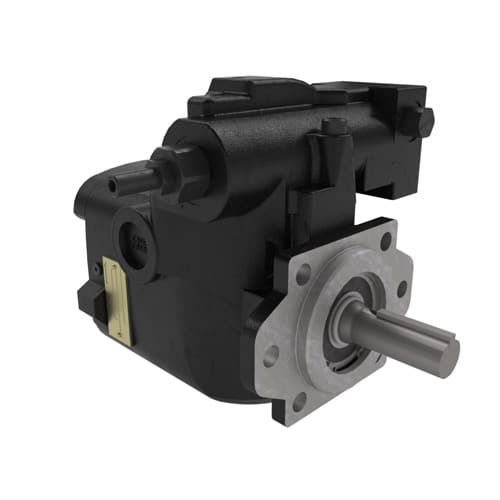

Hydraulic piston pump PVG-048
برند:
Oilgear
مشخصات:
With fast control response and superior performance, the PVG is a variable-displacement axial-piston pump designed to take on your most demanding applications. It offers high-pressure, superior performance in a compact design — while thriving on low-viscosity fluids.
Product Details
That compact design is made possible with our proprietary hydrodynamic bearing that supports the cylinder barrel. And with multiple frame sizes and five displacements, there’s a high-performance PVG made for your operations.
Our PVG open-loop axial-piston hydraulic pumps provide an almost instantaneous response to system commands through a high-response, four-way, pilot-operated control. Other pumps this size can’t do that — especially at our price.
Oilgear has an advanced “hard-on-hard” rotating system that provides longer operational life, resistance to contamination and allows our pumps to thrive on low-viscosity fluids.
Oilgear makes some of the longest-lasting, most reliable pumps in the world. Learn more about the proprietary design of the Oilgear variable-displacement, axial-piston pump line.
توضیحات:
Type
piston
Other characteristics
compact, high-pressure, variable-displacement, high-performance, axial
Pressure
Max.: 400 bar(5,802 psi)Min.: 301 bar(4,366 psi)
Flow rate
79.9 l/min(21.11 us gal/min)
Speed
Max.: 3,000 rpm(18,850 rad.min-1)Min.: 2,000 rpm(12,566 rad.min-1)
Weight
31 kg(68.34 lb)
Power
54.5 kW(74.1 hp)
