نام محصول:
پمپ پیستون هیدرولیک
نام انگلیسی:

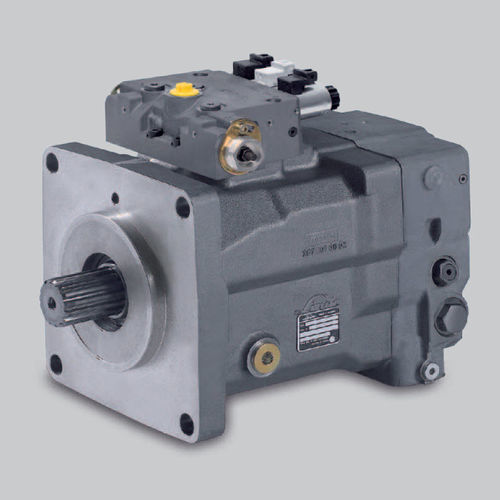

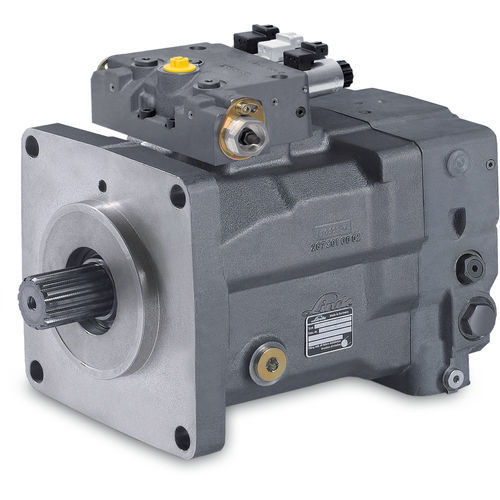

Hydraulic piston pump HPV-02
برند:
LINDE HYDRAULIC
مشخصات:
All the controls used in the Series 02 are based on a load-independent control mechanism. No matter which control is used: identical commands always result in the same response in the machine. The sensitive and precise machine control makes work easier and increases productivity. Various customer system options for mechanical, hydraulic and electric input solutions are available. Further special regulating features like torque control and pressure cut-off are also available. The reliable control of the pump can easily be integrated into any kind of vehicle management control system.
Advantages
dynamic response
high reliability
long service life
noise-optimized
precise and load-independent
Design characteristics

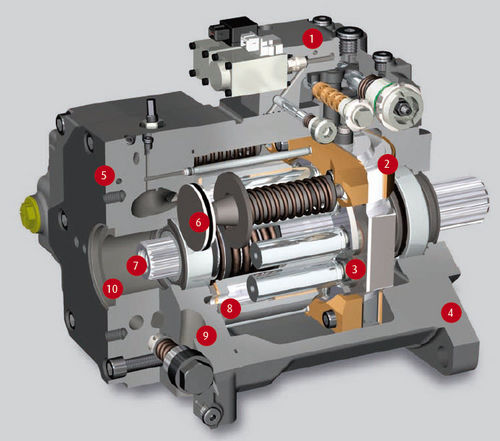

axial piston pump in swashplate design for high pressure closed loop systems
exact and rugged servo control devices (mechanical, hydraulic, electro-hydraulic)
integrated low pressure relief valves for boost, control and cooler circuits
SAE high pressure ports
through shaft SAE A, B, B-B and C
optional tandem and multiple pumps
clockwise or counter clockwise rotation
integrated high pressure relief valves with make-up function
replaceable cartridge filter
SAE mounting flange with ANSI or SAE spline shaft
charge pressure pumps for internal and external suction, integrated cold start relief valve optional
توضیحات:
Type
piston
Applications
closed circuit
Other characteristics
compact, high-pressure, low-noise, variable-displacement, rugged, high-power
Pressure
Min.: 0 bar(0 psi)Max.: 500 bar(7,252 psi)450 bar(6,527 psi)
Speed
Min.: 500 rpm(3,142 rad.min-1)Max.: 4,150 rpm(26,075 rad.min-1)
Weight
Min.: 46 kg(101.41 lb)Max.: 164 kg(361.56 lb)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 90 °C(194 °F)
Power
Min.: 153 kW(208.02 hp)Max.: 485 kW(659.42 hp)
