نام محصول:
پمپ پیستون هیدرولیک

نام انگلیسی:

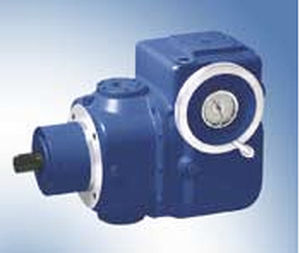

Hydraulic piston pump A2VK

برند:
LED

مشخصات:
Axial piston high pressure variable pumps are used for the pumping and metering of polyurethane components.

The particular advantages offered by the A2VK variable pumps are:

– High metering accurary and repeatability of the variable flows ;

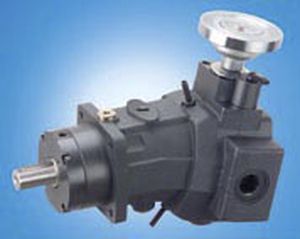

– Manual control via handwheel with built-in-precision measuring scale or alternatively mechanical rod control, for mounting pneumatic or hydraulic control cylinders (remote control) ;
– Operating pressure up to 250bar ;
– Low suction pressure, even when pumping highly viscous fluids ;
– Very little pulsion of flow ;
– Compatibility of pump components with materials to be pumped (Polyol, Isocyanat) through use of specially matched materials and special seals ;
– Quiet operation ;
– Optimum volumetric efficiency

توضیحات:
Type
piston

Operation
manual, pneumatic

Other characteristics
high-pressure, variable-displacement, remote control

Pressure
250 bar(3,626 psi)
