نام محصول:

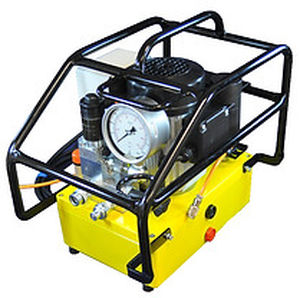

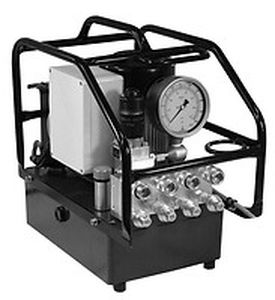

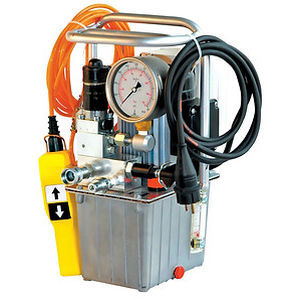

پمپ پیستون هیدرولیک
نام انگلیسی:
Hydraulic piston pump HE025 / FE055 / FE110 /HEM 2PA / HEM 4PA
برند:
Juwel Schraubtechnik GmbH
مشخصات:
Compact three-stage hydraulic high-performance pump for operating hydraulic torque wrenches
Aluminum oil tank with oil leveladisplay and thermometer
Carrying and protective bracket made of steel
Precision pressure gauge
Stepless maximum pressure setting from 40-800 bars
Fixed adjustable maximum pressure for the tool return stroke
Design for continuous operation
Hour meter on option
3-stage electro-hydraulic unit for operating hydraulic torque tools with an extremely compact design.
2-button safety remote control with 5 meter long connection cable with plug-in system. Available for AC voltages of 100-230 volts, 50/60 Hz with a maximum pressure of up to 800 bar (optionally 700 bar).
Simple and accurate pressure or torque setting.
3-stage electro-hydraulic unit for operating hydraulic torque tools with an extremely compact design.
2-button safety remote control with 5 meter long connection cable with plug-in system. Available for AC voltages of 100-230 volts, 50/60 Hz with a maximum pressure of up to 800 bar (optionally 700 bar).
Simple and accurate pressure or torque setting.
Equipment:
Extremely flat design and low center of gravity
Optional Press and Run automatic mode function
Optional connection option for 1 to 4 tools
Stable aluminum tank with oil sight glass and Oil drain plug, in-line industrial oil filter
Pressure gauge class 1.0 ø 100 mm, filled with glycerine
0-1000 bar (optionally 0-800 bar)
Electric control with automatic shutdown and restart protection
Temperature-controlled cooling system for continuous operation under tough conditions
توضیحات:
Type
piston
Operation
electro-hydraulic
